Gorgar Rubber Kits



Williams Electronics, Incorporated , December, 1979
4 Players

(2)

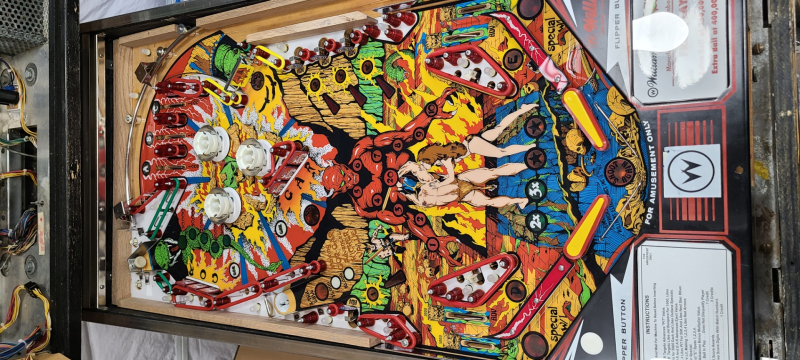

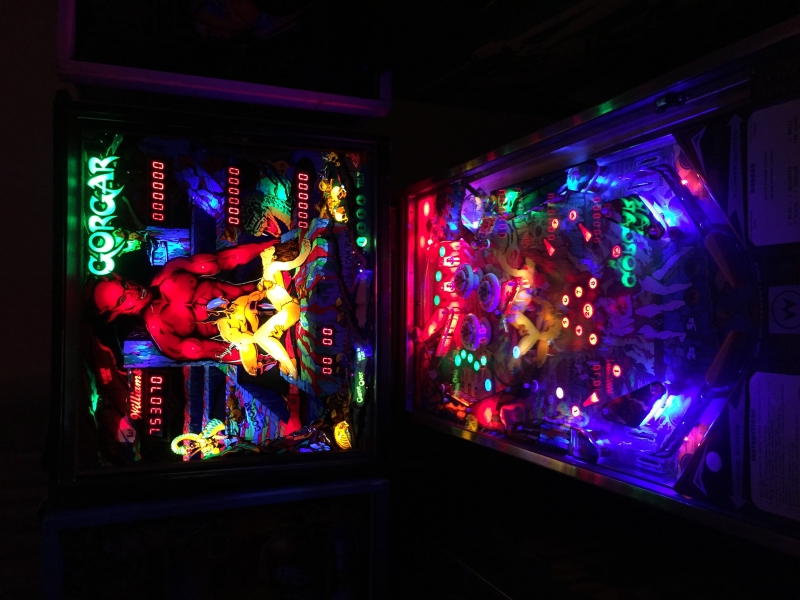

White rubber ring kit. There is no official ring list, this is what was in my machine.

Submitted by: Ben C. Ben C.
Submitted on: 2015-07-08 00:47:00 2015-07-08 00:47:00
View Full Kit

Rubber Rings - 3/8 Inch O.D.
White
Qty: 7
Rubber Rings - 5/16 Inch I.D.
White
Qty: 11
Rubber Rings - 3/4 Inch I.D.
White
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - 2 Inch I.D.
White
Qty: 5
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 4
Rubber Rings - 3 Inch I.D.
White
Qty: 2
Rubber Rings - Flipper Standard
Red
Qty: 2
Rubber Rings - Shooter Tip
White
Qty: 1
(0)

Attempt at a colorful Gorgar kit. Not tested.

Submitted by: Anonymous Anonymous
Submitted on: 2016-10-22 08:56:40 2016-10-22 08:56:40
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 11
Rubber Rings - 3 Inch I.D.
Orange
Qty: 2
Rubber Rings - Flipper Standard
Blue
Qty: 2
Rubber Rings - Flipper Standard
Green
Qty: 2
Rubber Rings - Shooter Tip
Yellow
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Green
Qty: 3
Rubber Rings - 2 1/2 Inch I.D.
Red
Qty: 1
Rubber Rings - 2 Inch I.D.
Green
Qty: 3
Rubber Rings - 2 Inch I.D.
Red
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
Red
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Red
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Green
Qty: 1
Post Sleeves - Standard
Green
Qty: 5
Post Sleeves - Standard
Red
Qty: 5
(0)

added rubber caps for the plastics so everything matches

Submitted by: Jordan N. Jordan N.
Submitted on: 2017-01-09 10:13:41 2017-01-09 10:13:41
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/8 Inch O.D.
White
Qty: 7
Rubber Rings - 5/16 Inch I.D.
White
Qty: 11
Rubber Rings - 3/4 Inch I.D.
White
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - 2 Inch I.D.
White
Qty: 5
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 4
Rubber Rings - 3 Inch I.D.
White
Qty: 2
Rubber Rings - Flipper Standard
Red
Qty: 2
Rubber Rings - Shooter Tip
White
Qty: 1
Misc - Post Cap
White
Qty: 20
(0)

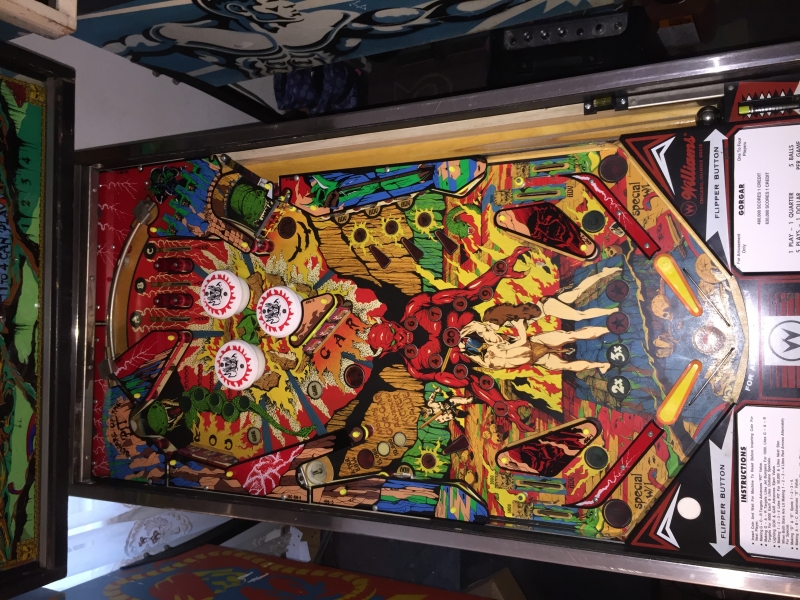

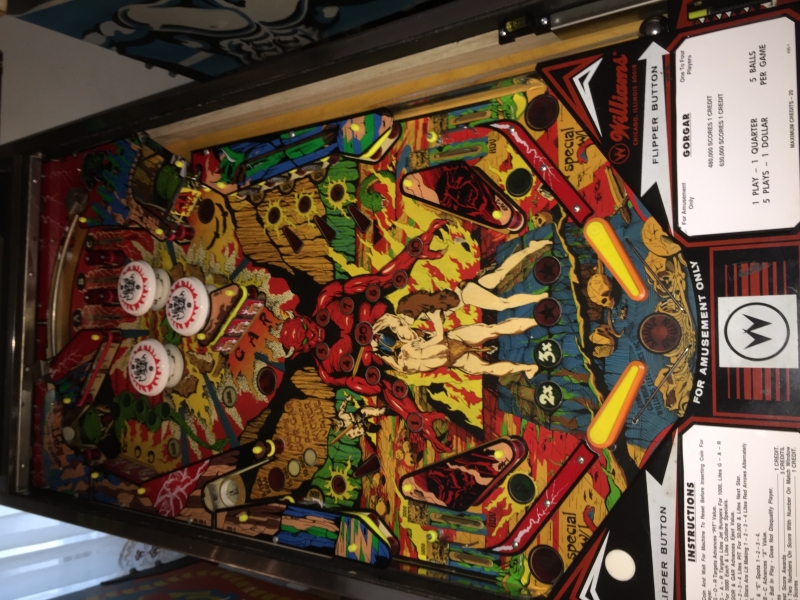

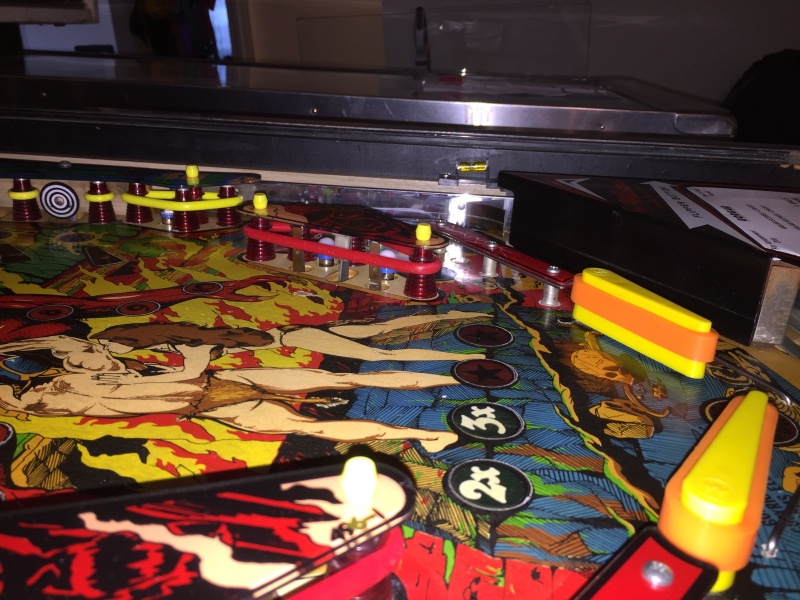

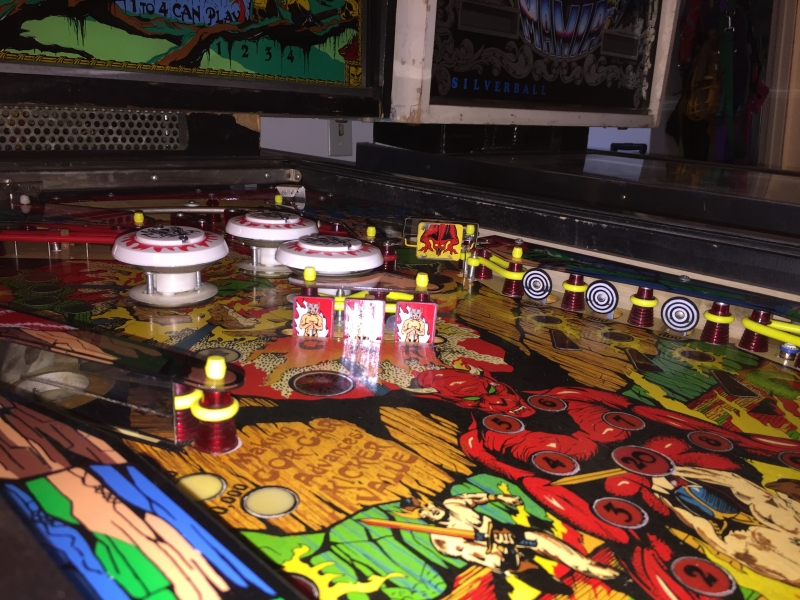

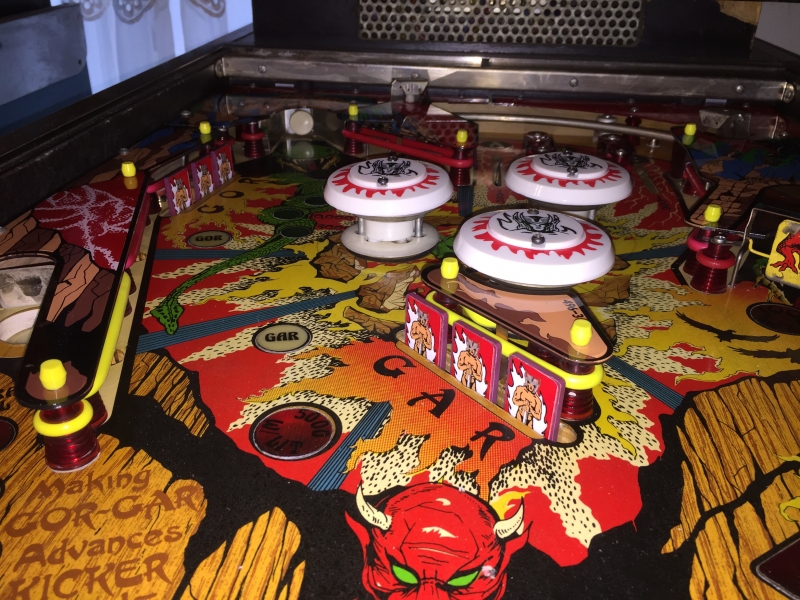

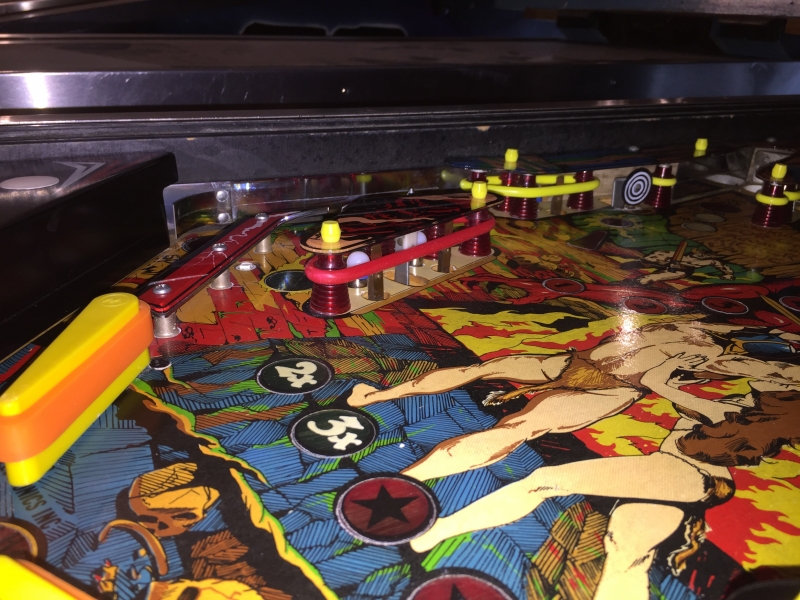

Orange flippers. Red slings. Yellow and red rubbers. Yellow post caps

Submitted by: Jim C. Jim C.
Submitted on: 2017-01-16 20:08:17 2017-01-16 20:08:17
View Full Kit

Rubber Rings - Shooter Tip
Yellow
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Red
Qty: 3
Rubber Rings - 2 Inch I.D.
Red
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Red
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 9
Rubber Rings - 5/16 Inch I.D.
Yellow
Qty: 5
Rubber Rings - 2 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Yellow
Qty: 5
Rubber Rings - Flipper Standard
Orange
Qty: 2
Misc - Post Cap
Yellow
Qty: 19
(0)

red rubber kit with slingshots in yellow

Submitted by: Anonymous Anonymous
Submitted on: 2017-04-01 17:02:58 2017-04-01 17:02:58
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/8 Inch O.D.
Red
Qty: 7
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 11
Rubber Rings - 3/4 Inch I.D.
Red
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Red
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Red
Qty: 1
Rubber Rings - 2 Inch I.D.
Red
Qty: 2
Rubber Rings - 2 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 3 Inch I.D.
Red
Qty: 2
Rubber Rings - Flipper Standard
Red
Qty: 2
Rubber Rings - Shooter Tip
Red
Qty: 1
(0)

Classic white factory look

Submitted by: Phillip G. Phillip G.
Submitted on: 2019-12-23 11:39:34 2019-12-23 11:39:34
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
White
Qty: 13
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 4
Rubber Rings - 2 Inch I.D.
White
Qty: 5
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 3
Rubber Rings - Flipper Standard
Red
Qty: 2
Rubber Rings - 7/16 Inch O.D.
White
Qty: 5
Rubber Rings - Shooter Tip
White
Qty: 1
(0)

Gorgar all red with red post caps

Submitted by: Anonymous Anonymous
Submitted on: 2020-01-19 18:46:29 2020-01-19 18:46:29
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/8 Inch O.D.
Red
Qty: 7
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 11
Rubber Rings - 3/4 Inch I.D.
Red
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Red
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Red
Qty: 1
Rubber Rings - 2 Inch I.D.
Red
Qty: 2
Rubber Rings - 3 Inch I.D.
Red
Qty: 2
Rubber Rings - Flipper Standard
Red
Qty: 2
Rubber Rings - Shooter Tip
Red
Qty: 1
Misc - Post Cap
Red
Qty: 30
Rubber Rings - 2 Inch I.D.
Red
Qty: 2
(0)

Color Match with Choice on 2"

Submitted by: Anonymous Anonymous
Submitted on: 2020-07-20 19:35:03 2020-07-20 19:35:03
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/8 Inch O.D.
Red
Qty: 4
Rubber Rings - 3/8 Inch O.D.
Yellow
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 5
Rubber Rings - 5/16 Inch I.D.
Green
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Lt. Blue
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Yellow
Qty: 3
Rubber Rings - 3/4 Inch I.D.
Yellow
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Yellow
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Yellow
Qty: 1
Rubber Rings - 2 Inch I.D.
Red
Qty: 3
Rubber Rings - 2 Inch I.D.
Orange
Qty: 2
Rubber Rings - 2 Inch I.D.
Green
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Red
Qty: 2
Rubber Rings - 3 Inch I.D.
Red
Qty: 2
Rubber Rings - Shooter Tip
Red
Qty: 1
(0)

Full kit per specs from pinsides forum, mostly red, some yellow and green.

Submitted by: Anonymous Anonymous
Submitted on: 2021-05-27 22:59:07 2021-05-27 22:59:07
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/8 Inch O.D.
Red
Qty: 7
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 10
Rubber Rings - 3/4 Inch I.D.
Green
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Yellow
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Yellow
Qty: 1
Rubber Rings - 2 Inch I.D.
Red
Qty: 5
Rubber Rings - 2 1/2 Inch I.D.
Red
Qty: 3
Rubber Rings - 3 Inch I.D.
Red
Qty: 2
Rubber Rings - Flipper Standard
Red
Qty: 2
Rubber Rings - Shooter Tip
White
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Green
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Green
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Yellow
Qty: 1
(0)

Gorgar

Submitted by: Anonymous Anonymous
Submitted on: 2022-05-09 12:41:05 2022-05-09 12:41:05
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Shooter Tip
Yellow
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Red
Qty: 3
Rubber Rings - 2 Inch I.D.
Red
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Red
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 9
Rubber Rings - 5/16 Inch I.D.
Yellow
Qty: 5
Rubber Rings - 2 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Yellow
Qty: 5
Rubber Rings - Flipper Standard
Orange
Qty: 2
Misc - Post Cap
Yellow
Qty: 19
(0)

G.G.

Submitted by: Anonymous Anonymous
Submitted on: 2022-05-10 09:32:26 2022-05-10 09:32:26
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Shooter Tip
Yellow
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Red
Qty: 3
Rubber Rings - 2 Inch I.D.
Red
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Red
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 9
Rubber Rings - 5/16 Inch I.D.
Yellow
Qty: 5
Rubber Rings - 2 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Yellow
Qty: 5
Rubber Rings - Flipper Standard
Red
Qty: 2
Misc - Post Cap
Yellow
Qty: 19
(0)

Kit ID: 488 Gorgar

Submitted by: Anonymous Anonymous
Submitted on: 2022-11-28 07:29:39 2022-11-28 07:29:39
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Shooter Tip
Translucent
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 9
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 5
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 5
Rubber Rings - Flipper Standard
Translucent
Qty: 2
Misc - Post Cap
Translucent
Qty: 19
