Guns N' Roses Rubber Kits



Data East Pinball, Incorporated , June 20, 1994
4 Players , 6 Balls

(0)

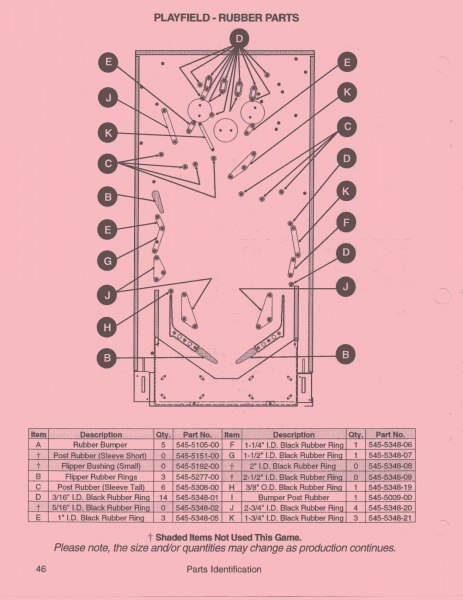

Standard Black kit from manual

Submitted by: Anonymous Anonymous
Submitted on: 2015-05-19 19:18:00 2015-05-19 19:18:00
View Full Kit

Rubber Rings - 3/16 Inch I.D.
Black
Qty: 14
Rubber Rings - 1 Inch I.D.
Black
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Black
Qty: 1
Rubber Rings - 3/8 Inch O.D.
Black
Qty: 1
Post Sleeves - Standard
Black
Qty: 7
Rubber Rings - 2 3/4 Inch I.D.
Black
Qty: 4
Rubber Rings - 1 3/4 Inch I.D.
Black
Qty: 3
Rubber Rings - Flipper Standard
Black
Qty: 3
Rubber Rings - Shooter Tip
Black
Qty: 1
(0)

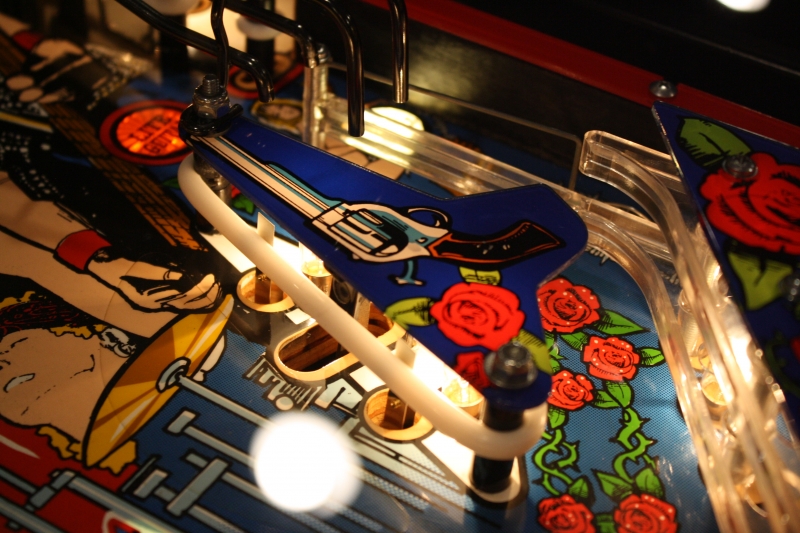

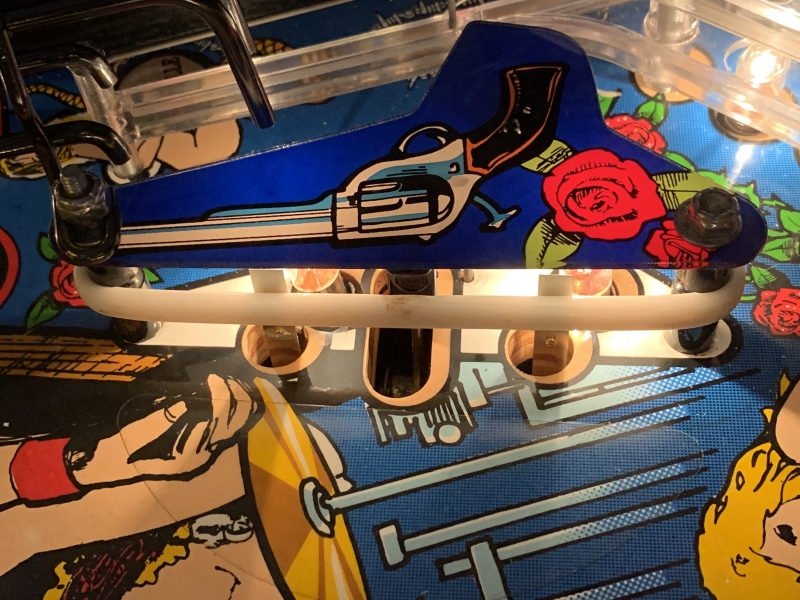

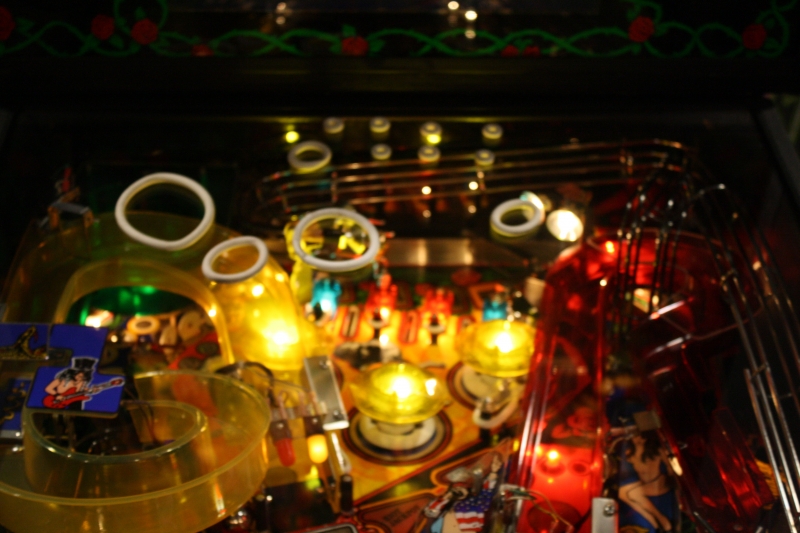

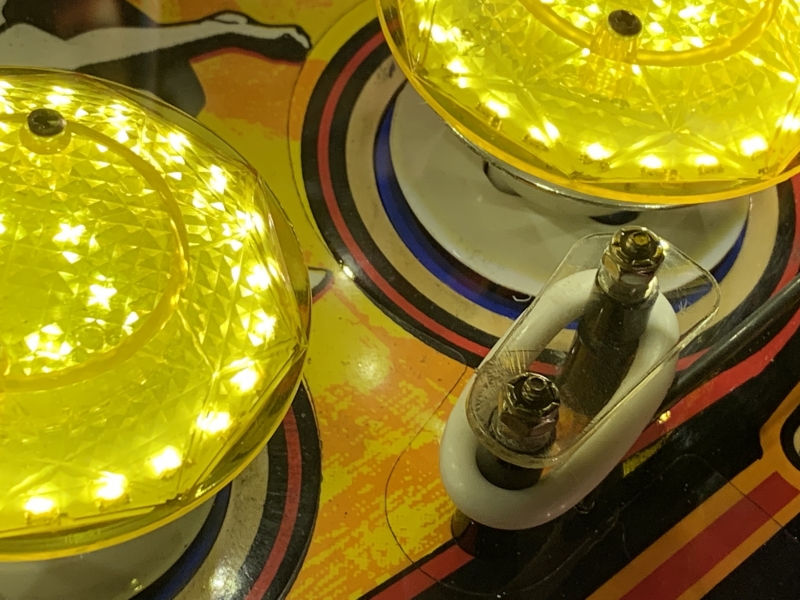

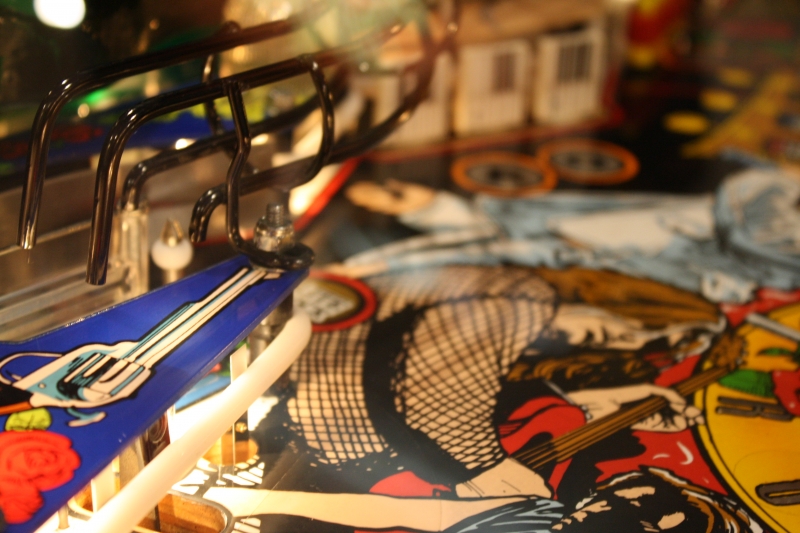

White rings. Black Sleeves, and Red Flippers. This kit has extra items. Personally, I use a 1" white instead of separate 3/16" rings by the leftmost pop bumper. So, you'll find yourself with a few extra 3/16 or 1" rings with this kit. The 2 3/4" rings on the kickers are a bit loose. So, I added two 2 1/4" rings to the kit in addition to the stock recommendation.. I figure it's better to have some extra things instead of paying shipping twice.

Submitted by: Scott D. Scott D.
Submitted on: 2017-11-12 11:54:54 2017-11-12 11:54:54
View Full Kit

Rubber Rings - Shooter Tip
Black
Qty: 1
Rubber Rings - 3/16 Inch I.D.
White
Qty: 14
Rubber Rings - 1 Inch I.D.
White
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - 3/8 Inch O.D.
White
Qty: 1
Rubber Rings - 2 3/4 Inch I.D.
White
Qty: 4
Rubber Rings - 1 3/4 Inch I.D.
White
Qty: 3
Rubber Rings - Flipper Standard
Red
Qty: 3
Post Sleeves - Standard
Black
Qty: 6
Rubber Rings - 2 1/4 Inch I.D.
White
Qty: 2
(0)

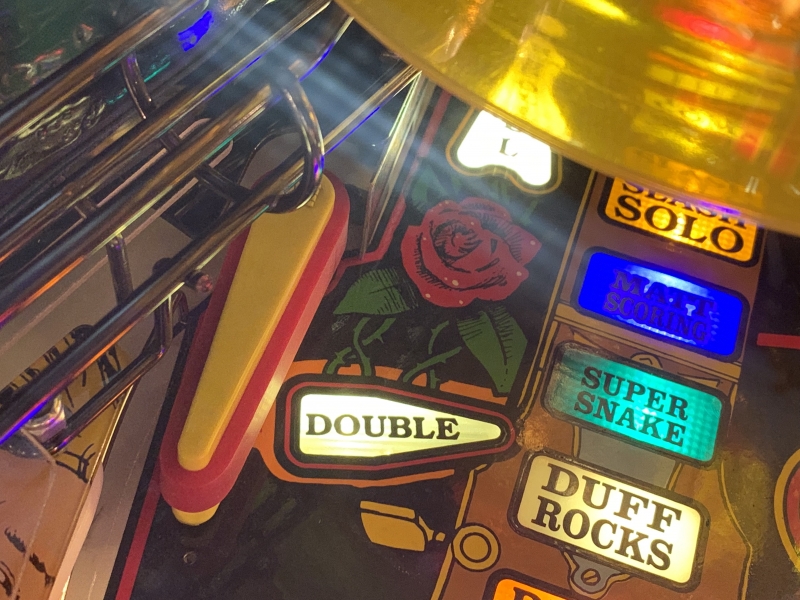

[Tested and complete] THIS IS FOR THE OLD DATA EAST GAME, NOT THE NEW JJP TITLE! Full set, all red. Some of the rubbers in the manual are wrong, this set should have the correct replacements. (I think there were 2 extra 3/16" but don't remember exactly)

Submitted by: Anonymous Anonymous
Submitted on: 2020-05-29 15:26:03 2020-05-29 15:26:03
View Full Kit

Rubber Rings - Flipper Standard
Red
Qty: 3
Post Sleeves - Standard
Red
Qty: 6
Rubber Rings - 3/16 Inch I.D.
Red
Qty: 11
Rubber Rings - 1 Inch I.D.
Red
Qty: 4
Rubber Rings - 1 1/4 Inch I.D.
Red
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Red
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Red
Qty: 2
Post Sleeves - 7/8 Inch
Red
Qty: 1
Rubber Rings - 2 3/4 Inch I.D.
Red
Qty: 1
Rubber Rings - 1 3/4 Inch I.D.
Red
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Red
Qty: 2
Rubber Rings - Shooter Tip
Red
Qty: 1
Rubber Rings - 2 1/4 Inch I.D.
Red
Qty: 1
Rubber Rings - Shooter Tip
Red
Qty: 1
(0)

DE JJP

Submitted by: Anonymous Anonymous
Submitted on: 2022-04-08 20:36:34 2022-04-08 20:36:34
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Black
Qty: 3
Post Sleeves - Standard
Yellow
Qty: 6
Rubber Rings - 3/16 Inch I.D.
White
Qty: 11
Rubber Rings - 1 Inch I.D.
White
Qty: 4
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 3/8 Inch O.D.
White
Qty: 2
Post Sleeves - 7/8 Inch
Yellow
Qty: 1
Rubber Rings - 2 3/4 Inch I.D.
White
Qty: 1
Rubber Rings - 1 3/4 Inch I.D.
White
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - Shooter Tip
Black
Qty: 1
Rubber Rings - 2 1/4 Inch I.D.
White
Qty: 1
Rubber Rings - Shooter Tip
Black
Qty: 1
