This kit is for Bally Hardbody but includes extra post rubbers as it is difficult to make out the chart from the manual.

Submitted by: Anonymous Anonymous

Submitted on: 2019-12-06 10:51:10 2019-12-06 10:51:10

(0)

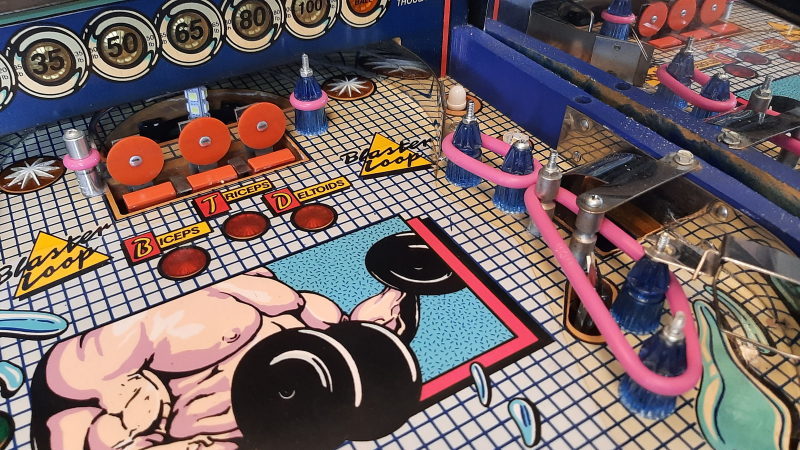

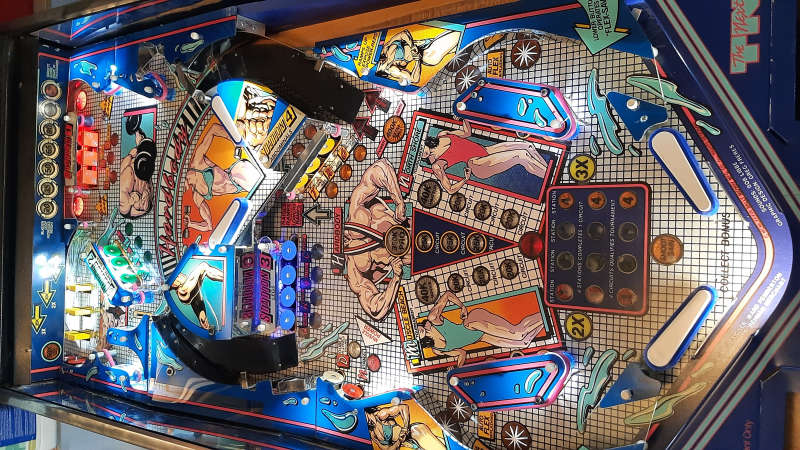

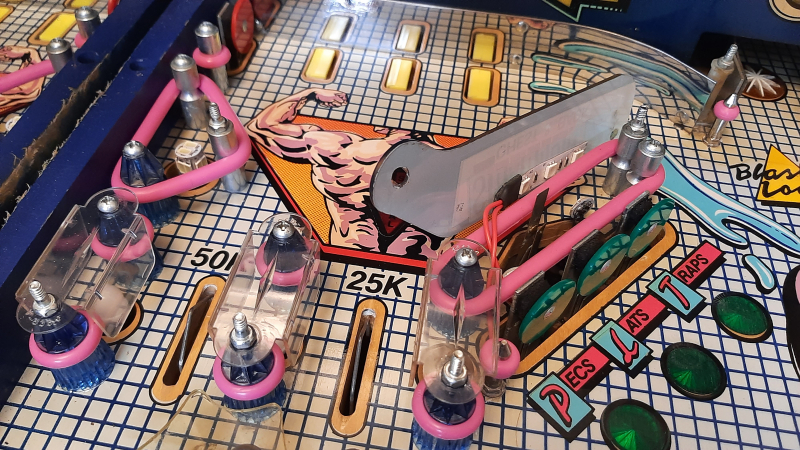

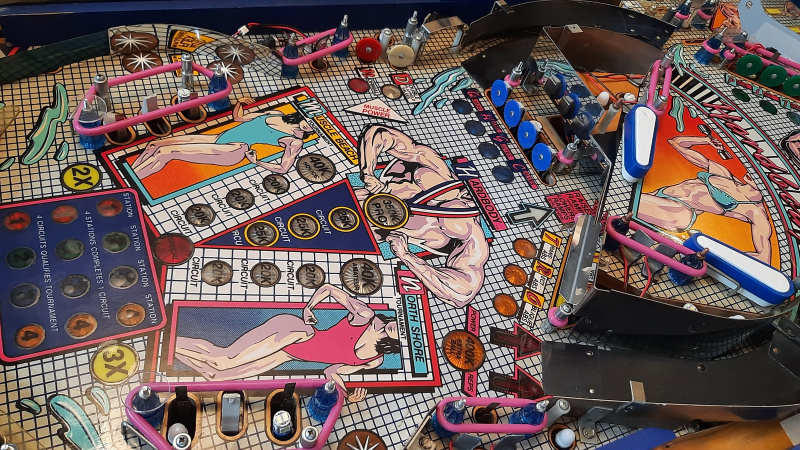

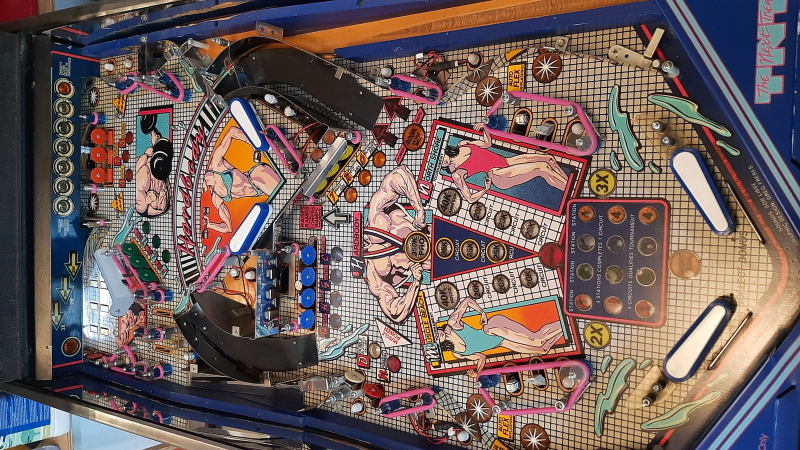

[Tested and Complete] Made using a test kit of Titan rubbers on the actual game for proper tensions, some sizes in the manual aren't suited as traditional rubber has a different tension and stretch than silicone. The 2" rubber called for in the manual behind the blue targets is replaced with 2 metal post rubbers (3/16" ID) to avoid blocking/touching the lights. There are also two 7/16" OD rubbers used to secure the lift ramp springs that are not in this kit. Install Guide: (2) 2.5" - Slingshots | (2) 2.25" - Below shooter lane exit, and behind green targets | (4) 1.5" - Below upper right flipper, above upper left flipper, below/left of inline drops, and below 2X/Normal targets | (1) 1.25" - Below right ramp | (1) 1" - Above shooter lane exit | (6) 5/16" ID - Star posts below inline drops, and one at right side of blaster loop | (5) 3/16" ID - Metal posts, left and right of blue targets, one left of inline drops, left side of blaster loop, and left of yellow targets | (2) 7/16" OD - Spike posts, left of yellow targets, and left of green targets | (1) 3/8" OD - For spike post between inline targets and blaster loop (smaller to allow more clearance for the shots)

Submitted by: Anonymous Anonymous

Submitted on: 2023-08-24 19:53:59 2023-08-24 19:53:59
