Last Action Hero Rubber Kits



Data East Pinball, Incorporated , August 09, 1993
4 Players

(0)

Basic Black ring kit from manual. This kit uses 2 1/2 instead of 2 3/4 for slingshots. Titan Silicone is not yet available in 2 3/4.

Submitted by: Anonymous Anonymous
Submitted on: 2015-08-11 09:03:05 2015-08-11 09:03:05
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 1
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 19
Post Sleeves - 1/2 Inch (Stern / DE)
Black
Qty: 19
Rubber Rings - 3/8 Inch O.D.
Black
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Black
Qty: 3
Rubber Rings - 2 1/2 Inch I.D.
Black
Qty: 2
Rubber Rings - Flipper Standard
Black
Qty: 2
(1)

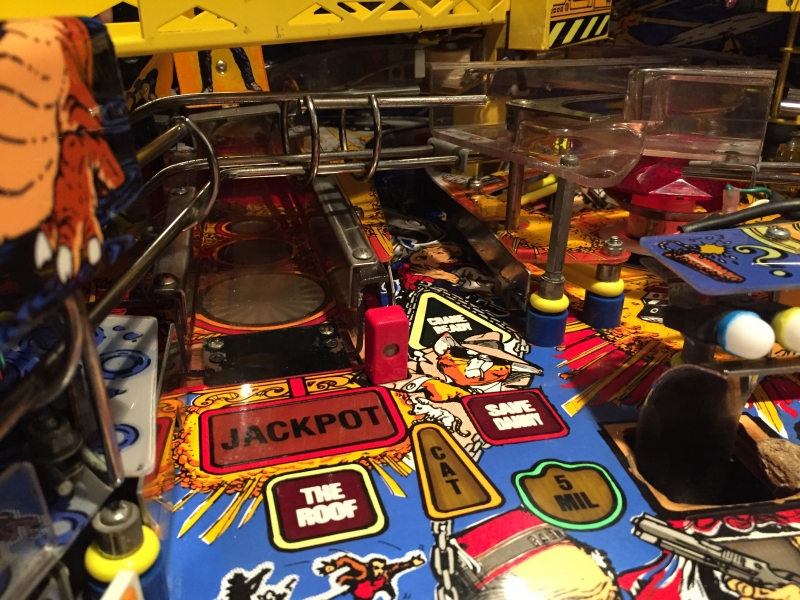

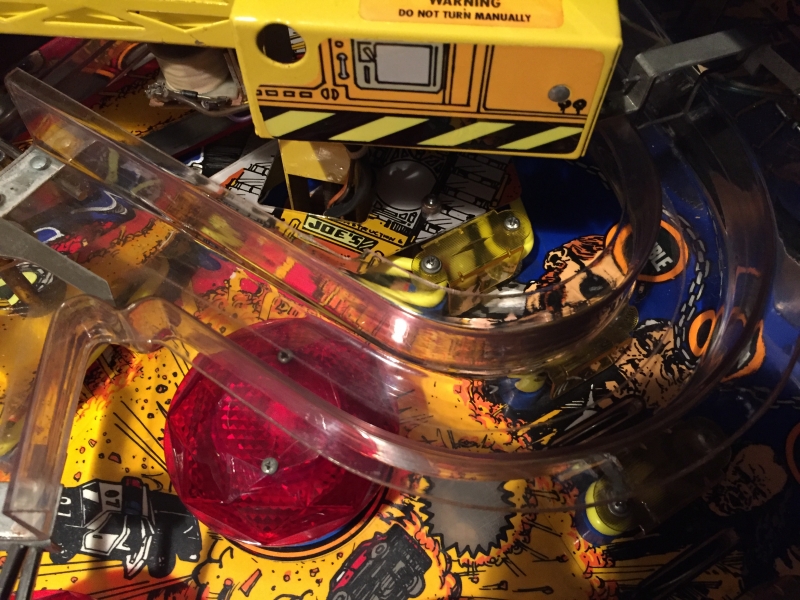

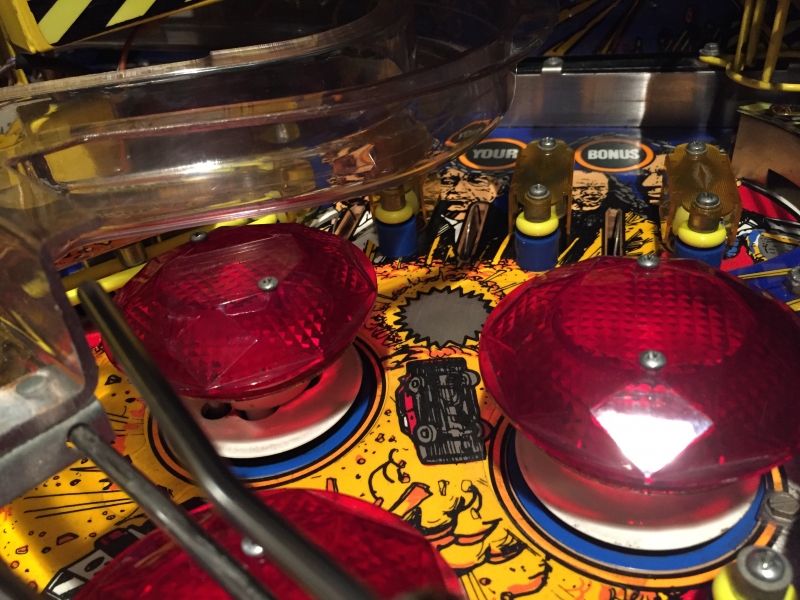

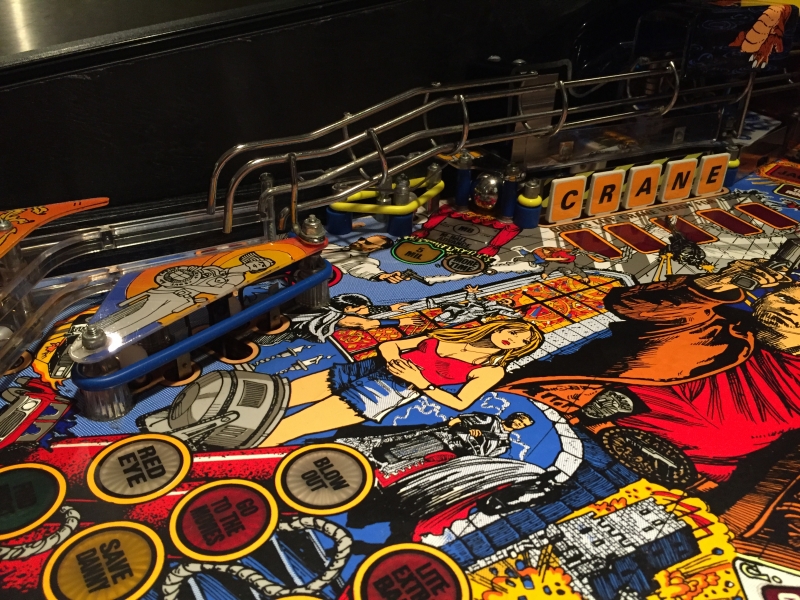

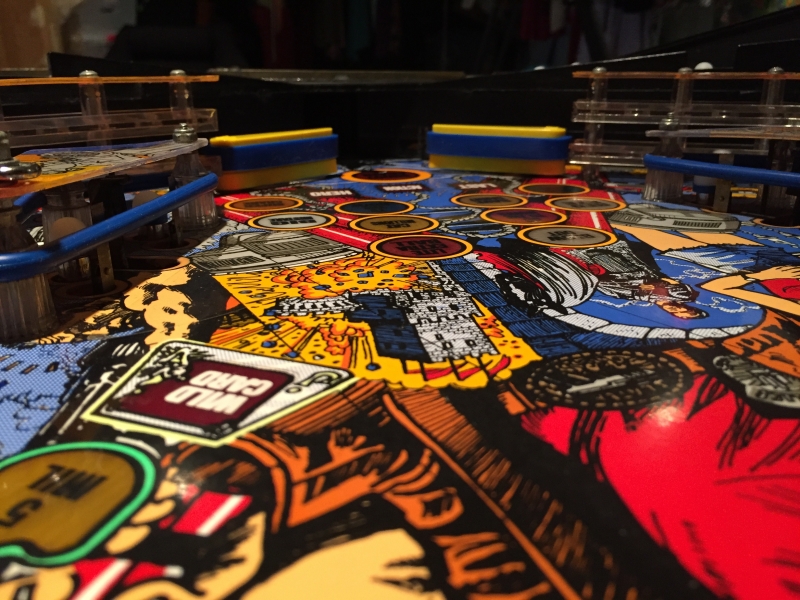

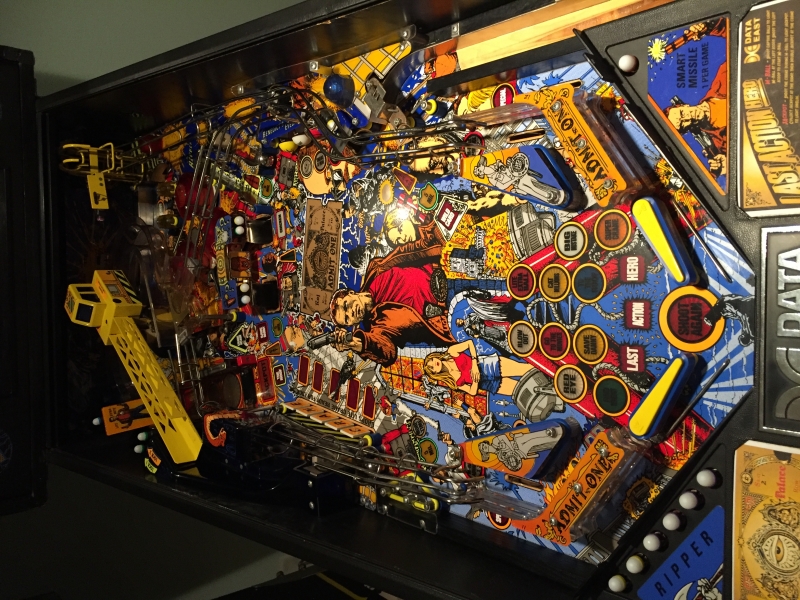

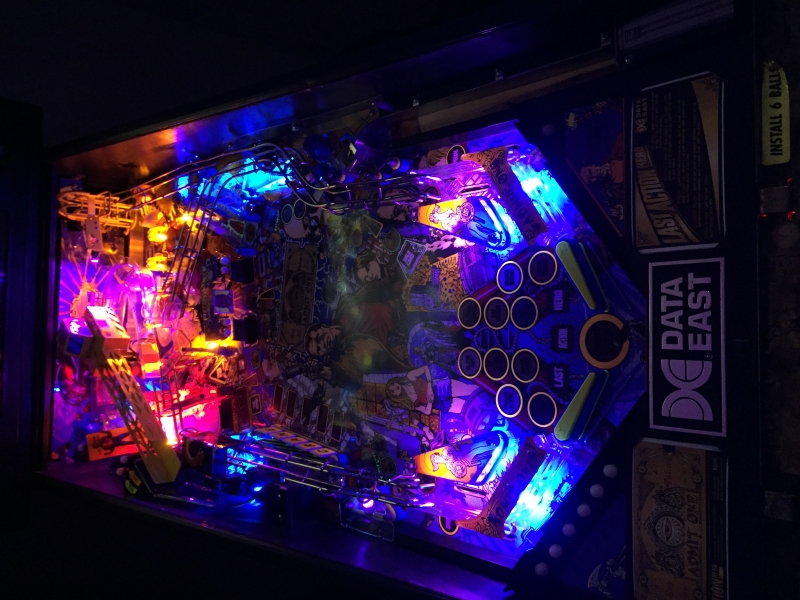

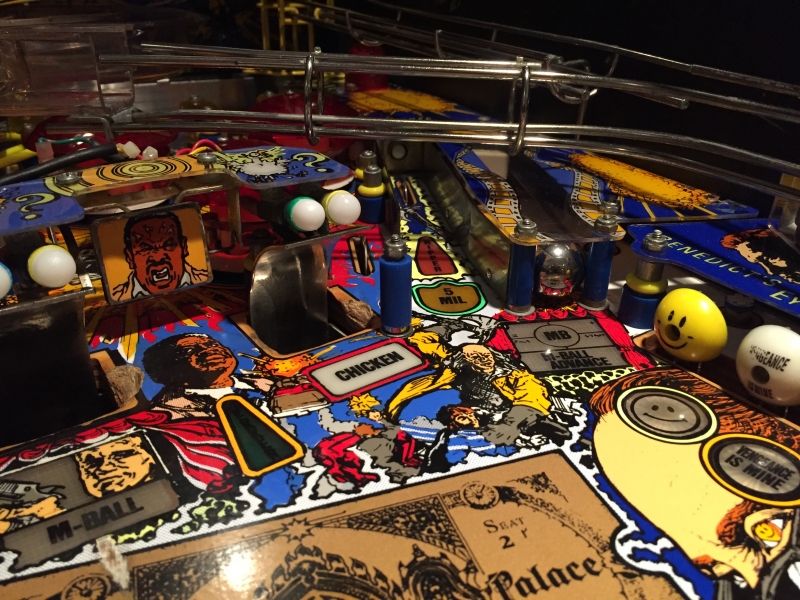

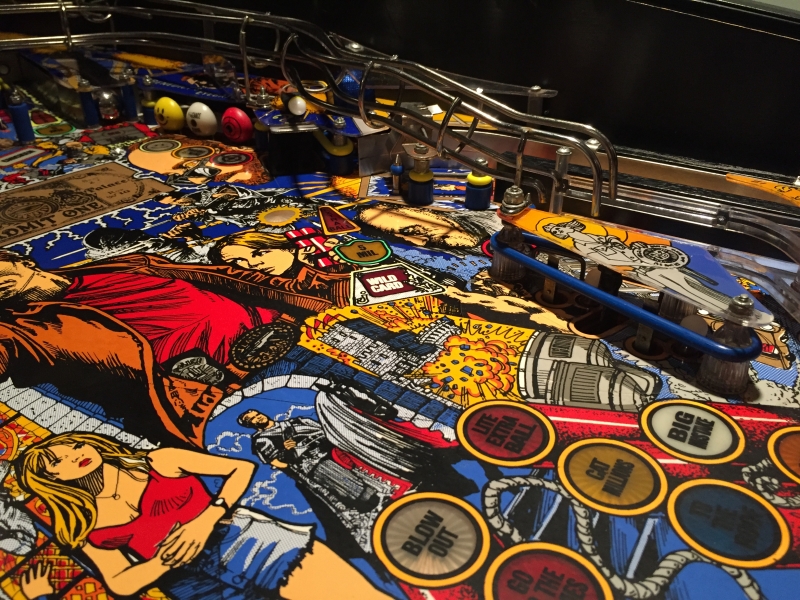

Blue and yellow rubbers

Submitted by: Jim C. Jim C.
Submitted on: 2017-06-24 20:13:56 2017-06-24 20:13:56
View Full Kit

Rubber Rings - Flipper Standard
Blue
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
Yellow
Qty: 3
Rubber Rings - 2 3/4 Inch I.D.
Blue
Qty: 2
Post Sleeves - 1/2 Inch (Stern / DE)
Blue
Qty: 22
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 3
Rubber Rings - 3/16 Inch I.D.
Yellow
Qty: 14
Rubber Rings - 3/8 Inch O.D.
Blue
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
Yellow
Qty: 2
Post Sleeves - Stern Slim Tapered
Blue
Qty: 4
Post Sleeves - Standard
Blue
Qty: 1
(0)

Standard black kit, plus spares and a few clear posts for the upper lanes.

Submitted by: Anonymous Anonymous
Submitted on: 2018-01-31 18:36:01 2018-01-31 18:36:01
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 19
Post Sleeves - 1/2 Inch (Stern / DE)
Black
Qty: 19
Rubber Rings - 3/8 Inch O.D.
Black
Qty: 5
Rubber Rings - 1 1/2 Inch I.D.
Black
Qty: 3
Rubber Rings - Flipper Standard
Black
Qty: 2
Rubber Rings - 2 3/4 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 2
Post Sleeves - Stern Slim Tapered
Black
Qty: 4
Post Sleeves - Standard
Black
Qty: 1
Post Sleeves - Stern Slim Tapered
Red
Qty: 4
Post Sleeves - 1/2 Inch (Stern / DE)
Translucent
Qty: 8
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 12
Rubber Rings - Flipper Standard
Black
Qty: 2
Rubber Rings - Flipper Standard
Red
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Blue
Qty: 1
(0)

Blue and yellow with flipper options

Submitted by: Anonymous Anonymous
Submitted on: 2019-01-14 20:34:32 2019-01-14 20:34:32
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Blue
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
Yellow
Qty: 3
Rubber Rings - 2 3/4 Inch I.D.
Blue
Qty: 2
Post Sleeves - 1/2 Inch (Stern / DE)
Blue
Qty: 22
Rubber Rings - 5/16 Inch I.D.
Blue
Qty: 3
Rubber Rings - 3/16 Inch I.D.
Yellow
Qty: 14
Rubber Rings - 3/8 Inch O.D.
Blue
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
Yellow
Qty: 2
Post Sleeves - Stern Slim Tapered
Blue
Qty: 4
Post Sleeves - Standard
Blue
Qty: 1
Rubber Rings - Flipper Standard
Orange
Qty: 2
Rubber Rings - Flipper Standard
Red
Qty: 1
Rubber Rings - Flipper Standard
Red
Qty: 2
(0)

clear and blue with a few extras

Submitted by: Anonymous Anonymous
Submitted on: 2021-01-04 20:15:30 2021-01-04 20:15:30
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 2 3/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 3
Rubber Rings - Flipper Standard
Blue
Qty: 2
Post Sleeves - 1/2 Inch (Stern / DE)
Blue
Qty: 22
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 22
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 2
Post Sleeves - Stern Slim Tapered
Translucent
Qty: 5
Rubber Rings - 3/16 Inch I.D.
Blue
Qty: 3
Rubber Rings - 2 3/4 Inch I.D.
Blue
Qty: 2
(0)

Kit

Submitted by: Anonymous Anonymous
Submitted on: 2021-09-25 14:19:29 2021-09-25 14:19:29
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 2 3/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 3
Rubber Rings - Flipper Standard
Blue
Qty: 2
Post Sleeves - 1/2 Inch (Stern / DE)
Blue
Qty: 22
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 22
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 2
Post Sleeves - Stern Slim Tapered
Translucent
Qty: 5
Rubber Rings - 3/16 Inch I.D.
Blue
Qty: 3
Rubber Rings - 2 3/4 Inch I.D.
Blue
Qty: 2
(0)

Kit

Submitted by: Anonymous Anonymous
Submitted on: 2021-09-25 14:24:03 2021-09-25 14:24:03
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 2 3/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 3
Rubber Rings - Flipper Standard
Blue
Qty: 2
Post Sleeves - 1/2 Inch (Stern / DE)
Blue
Qty: 22
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 22
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 2
Post Sleeves - Stern Slim Tapered
Translucent
Qty: 5
Rubber Rings - 3/16 Inch I.D.
Blue
Qty: 3
Rubber Rings - 2 3/4 Inch I.D.
Blue
Qty: 2
Rubber Rings - Shooter Tip
Blue
Qty: 1
(0)

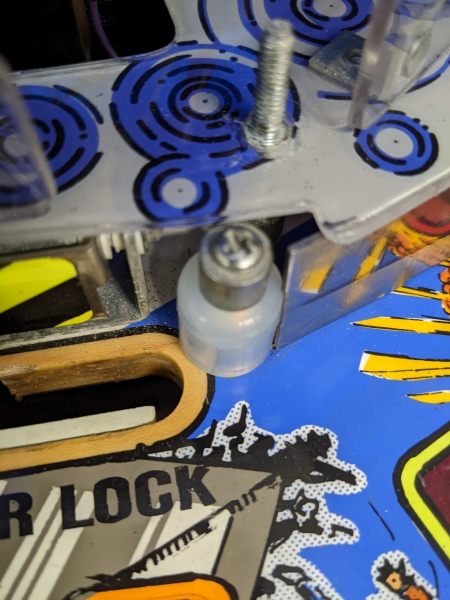

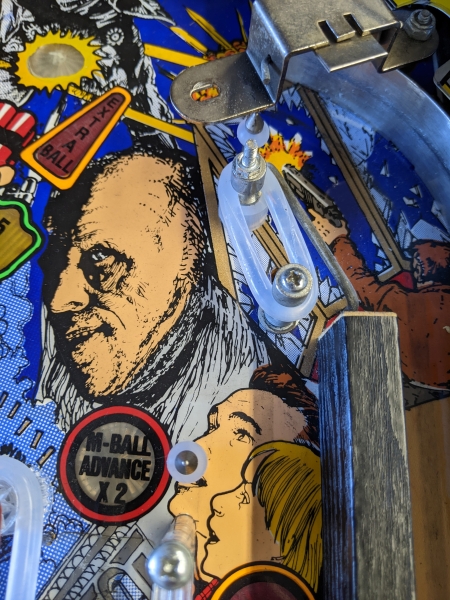

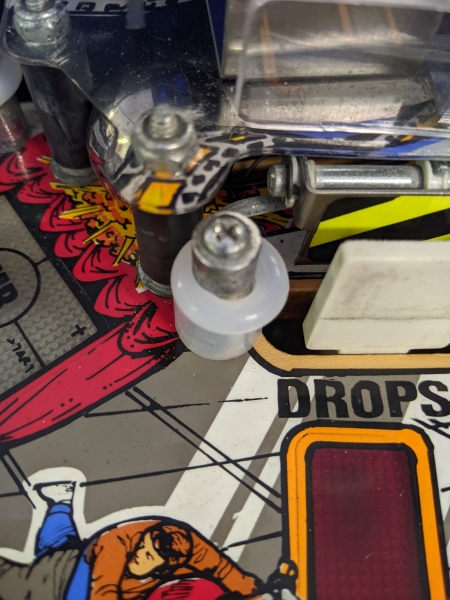

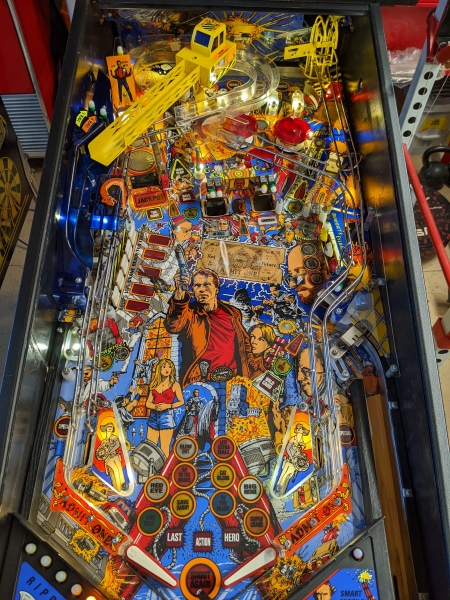

Original info came from manual, then modified based on actual installation need. Translucent bands - Red flipper rubber, Does not include "Rubber Bumper 545-5105-00" Changes: Added: 1 x 1/2 Post Sleeve 3/16 ID(Item A in manual) - Changed to 3/8 OD Mini Post x3 Added 3/4 band - Right side, lower playfield, just above the right outlane instead of manual specified 5/16 rings. Note on 5/16 ID rubbers (Item B in manual) - Fitment is lose compared to original, really need a 1/4 ID ring but 3/16 is closer to original. Changed to Quantity to 3 - 5/16 ID bands, the rest are 3/16 ID. See picture for fitment guide. Pictures show 3/4 band location, and difference in tightness between 5/16 ring and 3/16 ring.

Submitted by: Chris P. Chris P.
Submitted on: 2022-03-12 15:17:26 2022-03-12 15:17:26
View Full Kit

Rubber Rings - 3/8 Inch O.D.
Translucent
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 2 3/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - Low Bounce Standard Flipper
Red
Qty: 2
Post Sleeves - 1/2 Inch (Stern / DE)
Translucent
Qty: 20
Rubber Rings - Shooter Tip
Translucent
Qty: 1
Post Sleeves - Standard
Translucent
Qty: 5
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 13
(0)

Data east last action hero

Submitted by: Anonymous Anonymous
Submitted on: 2022-08-10 23:11:43 2022-08-10 23:11:43
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/8 Inch O.D.
Translucent
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 2 3/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - Low Bounce Standard Flipper
Red
Qty: 2
Post Sleeves - 1/2 Inch (Stern / DE)
Translucent
Qty: 20
Rubber Rings - Shooter Tip
Translucent
Qty: 1
Post Sleeves - Standard
Translucent
Qty: 5
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 13
(0)

Number and size from Rubber Parts Illustration on page 36 of the manual. But Item G (Rubber Bumper # 545-5105-00 is omitted because it appears to be mislabeled). Instead, extra post rubbers are added.

Submitted by: Anonymous Anonymous
Submitted on: 2023-06-24 07:12:04 2023-06-24 07:12:04
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 19
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Black
Qty: 3
Rubber Rings - 2 3/4 Inch I.D.
Black
Qty: 2
Rubber Rings - Flipper Standard
Black
Qty: 2
Post Sleeves - 1/2 Inch (Stern / DE)
Black
Qty: 23
