NBA Fastbreak Rubber Kits



Midway Manufacturing Company, a subsidiary of WMS Industries, Incorporated , March, 1997
4 Players

(0)

Game manual must be incorrect. It calls for three flipper rings and does not specify rubber for posts between in and out lanes.

Submitted by: Vincent G. Vincent G.
Submitted on: 2015-09-15 11:53:16 2015-09-15 11:53:16
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 4
Rubber Rings - 3/16 Inch I.D.
Black
Qty: 4
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Black
Qty: 5
Rubber Rings - 2 Inch I.D.
Black
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Black
Qty: 3
Post Sleeves - Standard
Black
Qty: 9
Rubber Rings - Flipper Standard
Black
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 2
(0)

Basketball orange kit from Eddie

Submitted by: Eddie B. Eddie B.
Submitted on: 2016-07-06 15:21:42 2016-07-06 15:21:42
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 2 1/2 Inch I.D.
Orange
Qty: 3
Rubber Rings - 2 Inch I.D.
Orange
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Orange
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Orange
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Orange
Qty: 1
Rubber Rings - Shooter Tip
Orange
Qty: 1
Rubber Rings - Flipper Standard
Orange
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Orange
Qty: 7
Rubber Rings - 7/16 Inch O.D.
Orange
Qty: 4
Post Sleeves - Standard
Orange
Qty: 9
Rubber Rings - 3/16 Inch I.D.
Orange
Qty: 4
(0)

Orange for flippers and mini posts, Red to match plastic outline and upper playfield Blue for Clear mini posts and standard posts Notes: there are some posts that don't have rubbers or not allowed for in the manual these have been allowed for in this kit

Submitted by: luke s. luke s.
Submitted on: 2017-12-19 04:48:46 2017-12-19 04:48:46
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Low Bounce Standard Flipper
Orange
Qty: 3
Rubber Rings - 2 1/2 Inch I.D.
Red
Qty: 3
Rubber Rings - 2 Inch I.D.
Red
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Red
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
Red
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Red
Qty: 1
Post Sleeves - Standard
Blue
Qty: 10
Rubber Rings - 3/8 Inch O.D.
Blue
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Orange
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Orange
Qty: 6
Rubber Rings - 5/16 Inch I.D.
Orange
Qty: 7
(0)

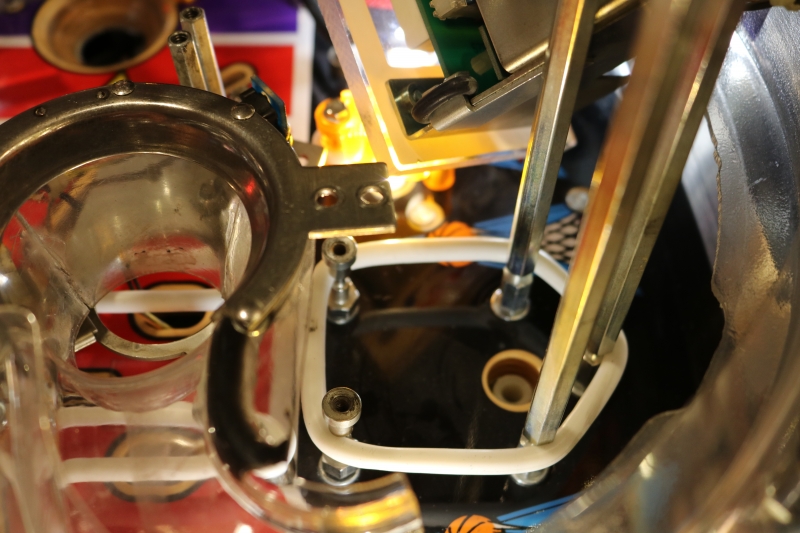

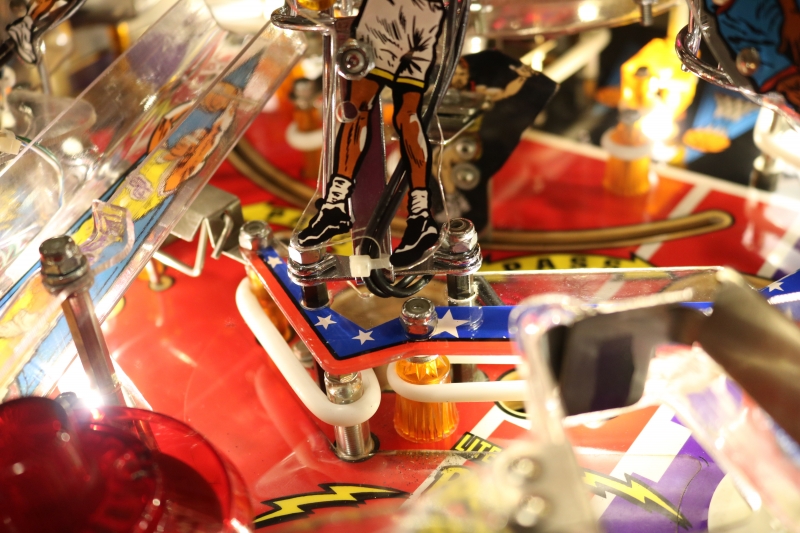

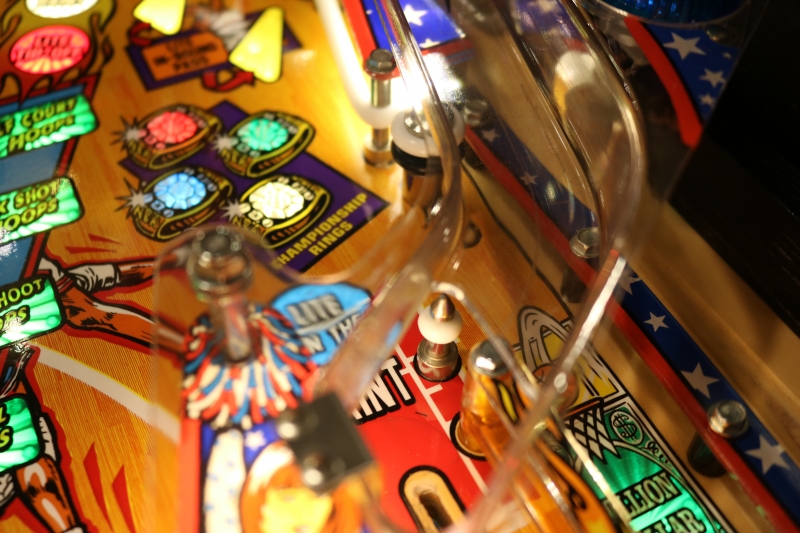

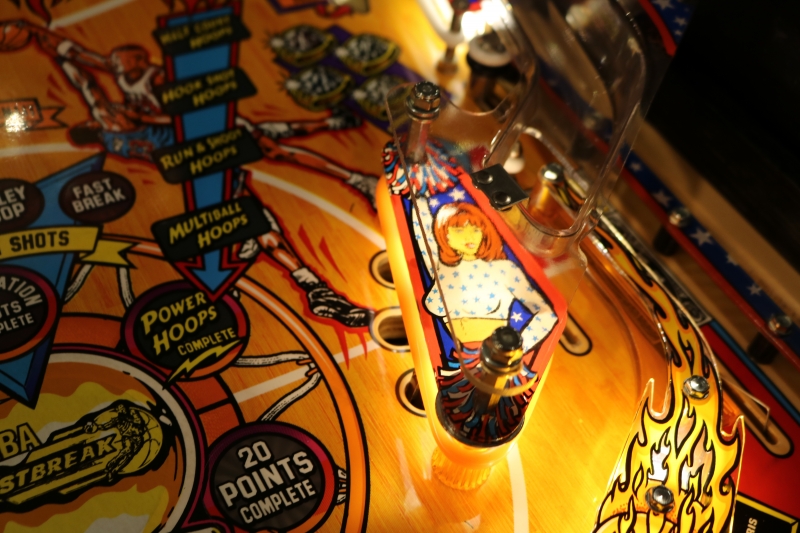

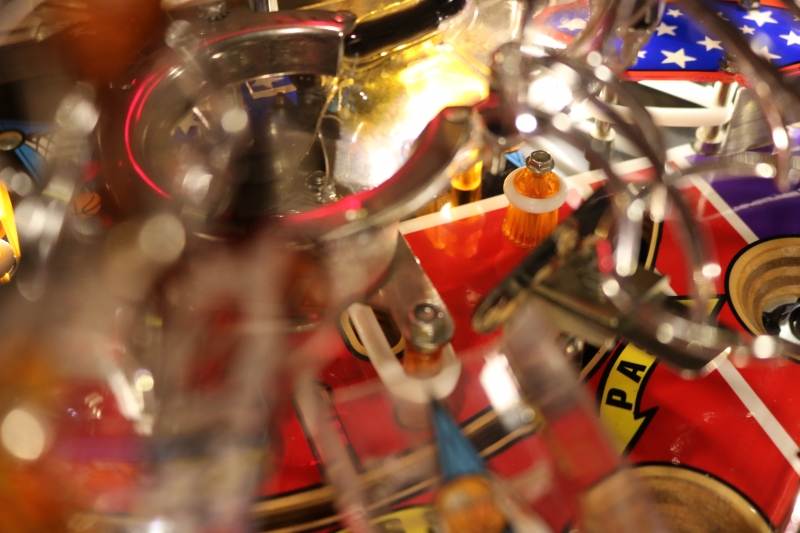

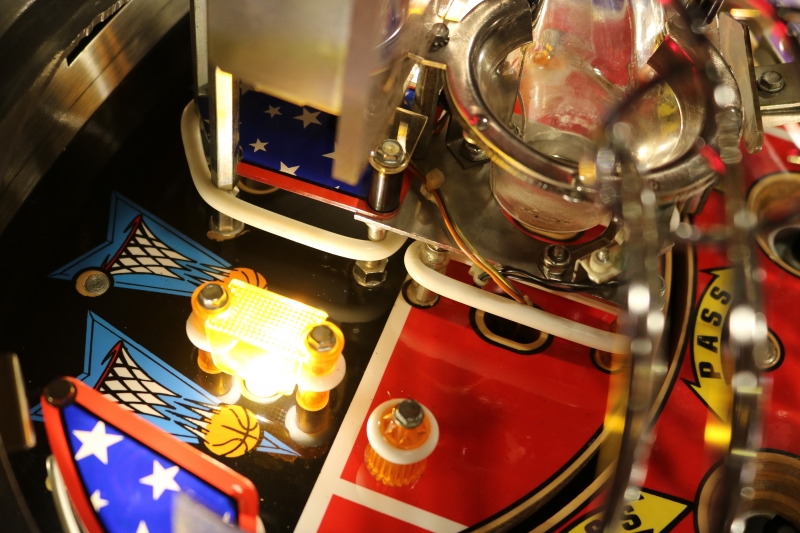

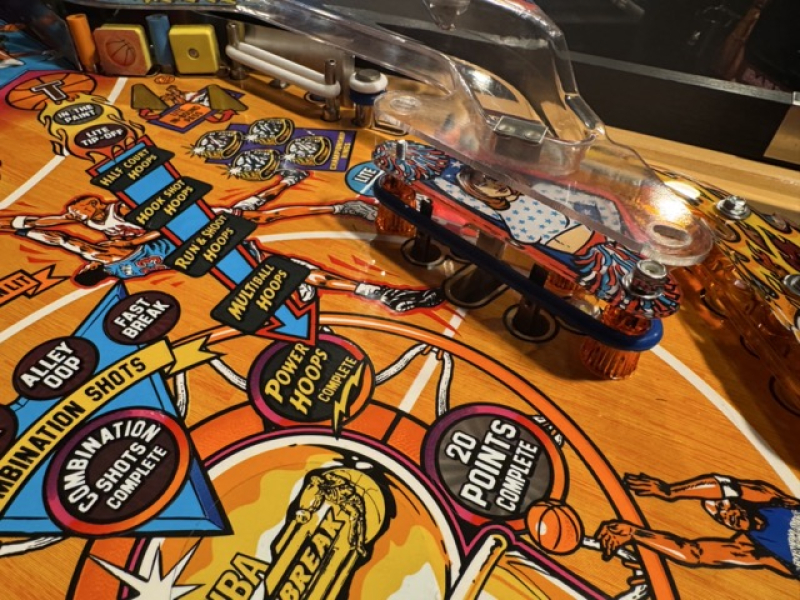

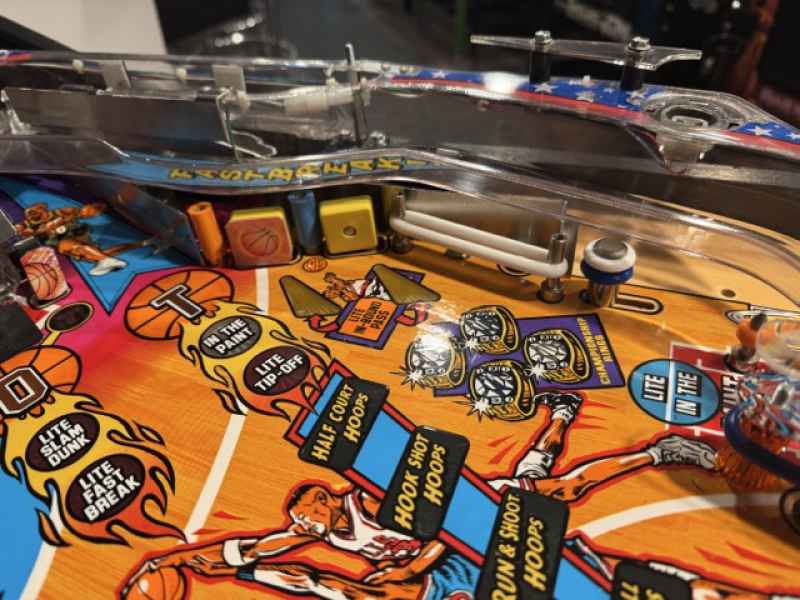

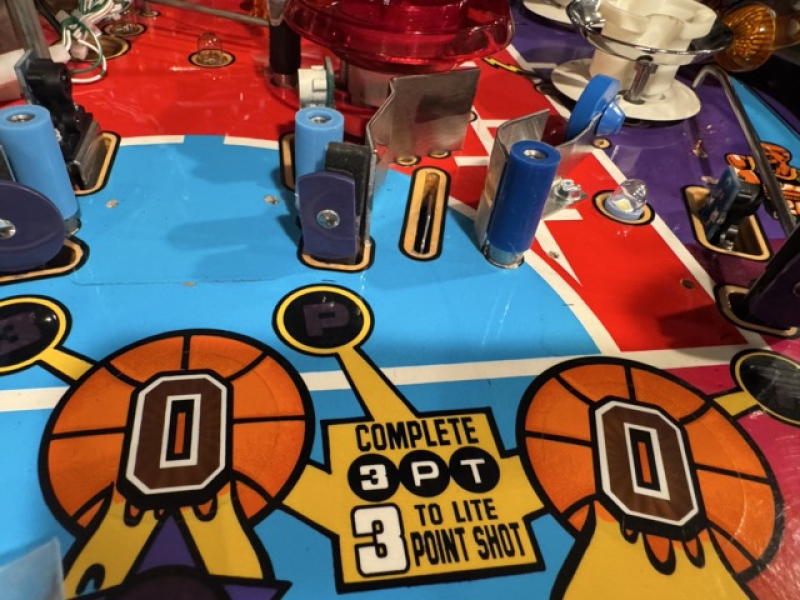

This is a kit for everything white that makes sense, with some color options. Because buying rings is better than buying more postage. Flippers. 3 purple. 2 black. 1 red (backbox) No white. 2 1/4" extra pair in orange for the slings 3/4" extra in red 3/8 OD + 2 oranges and 2 black if you like 3/16 + extra orange You need 10 posts. This has 5 white, 5 blue and 5 orange. Orange by the shots in SHOOT Purple Flippers, red backbox flipper the 2 1/2 under the net is a pain in the butt to replace. Get a beer and relax for that one.

Submitted by: Scott D. Scott D.
Submitted on: 2019-07-15 20:19:49 2019-07-15 20:19:49
View Full Kit

Rubber Rings - Flipper Standard
Red
Qty: 1
Rubber Rings - 2 1/4 Inch I.D.
Orange
Qty: 2
Rubber Rings - 2 1/4 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 5
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 1
Rubber Rings - 3/4 Inch I.D.
White
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Red
Qty: 1
Rubber Rings - 3/8 Inch O.D.
White
Qty: 4
Rubber Rings - 3/8 Inch O.D.
Black
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Orange
Qty: 2
Rubber Rings - 3/16 Inch I.D.
White
Qty: 6
Rubber Rings - 3/16 Inch I.D.
Orange
Qty: 6
Rubber Rings - 5/16 Inch I.D.
White
Qty: 7
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 7
Post Sleeves - Standard
Orange
Qty: 5
Post Sleeves - Standard
Black
Qty: 5
Post Sleeves - Standard
Blue
Qty: 5
Rubber Rings - Shooter Tip
White
Qty: 1
Rubber Rings - Flipper Standard
Purple
Qty: 2
Rubber Rings - 7/16 Inch O.D.
White
Qty: 4
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 1
(1)

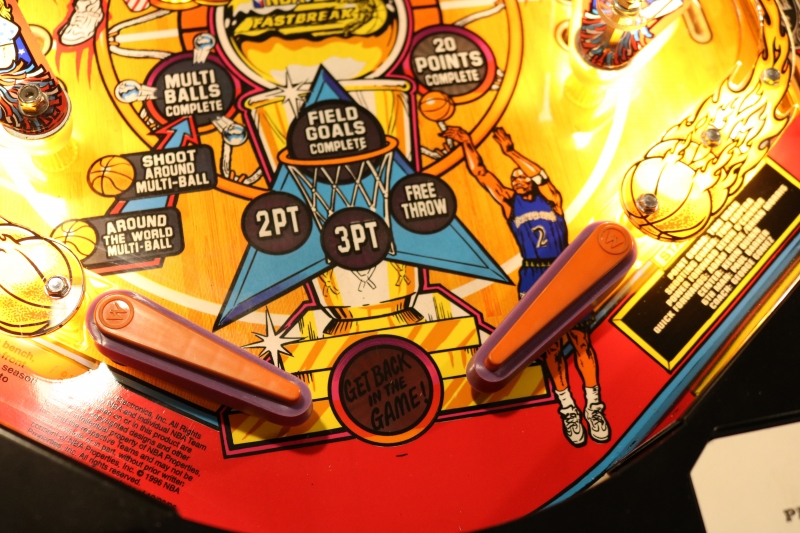

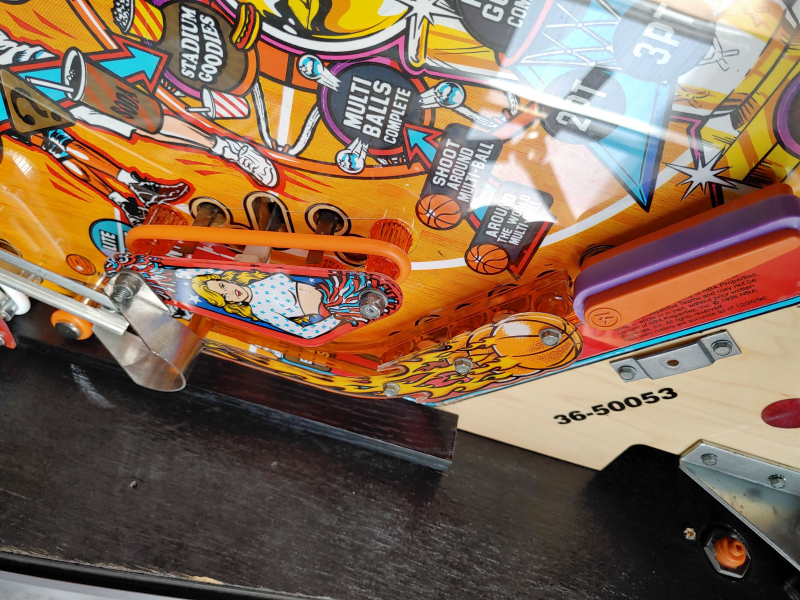

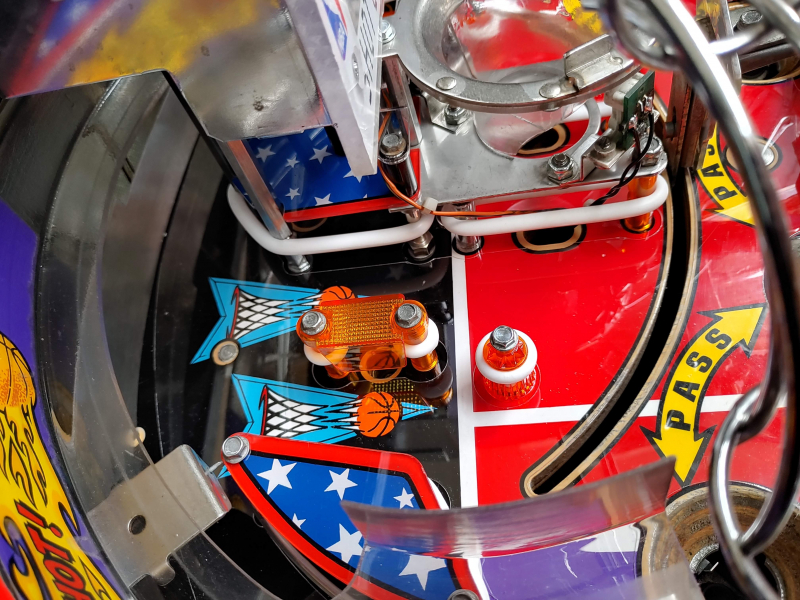

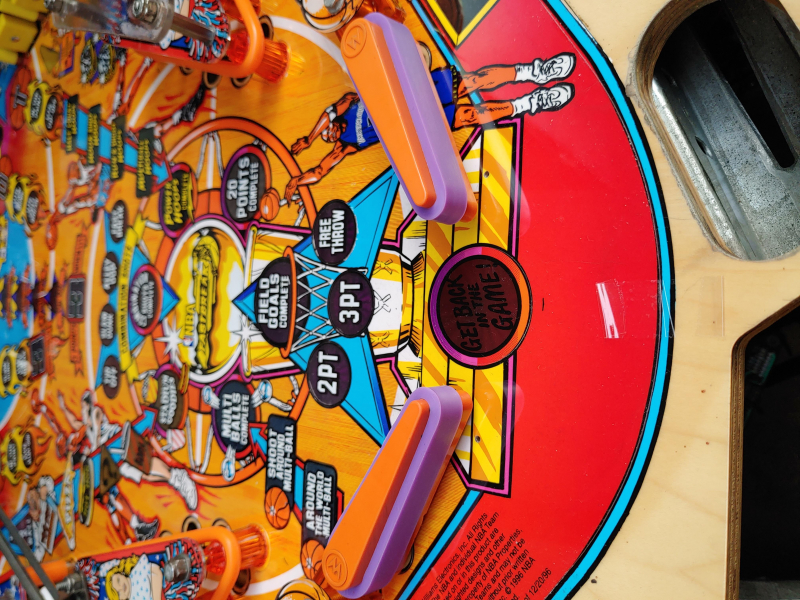

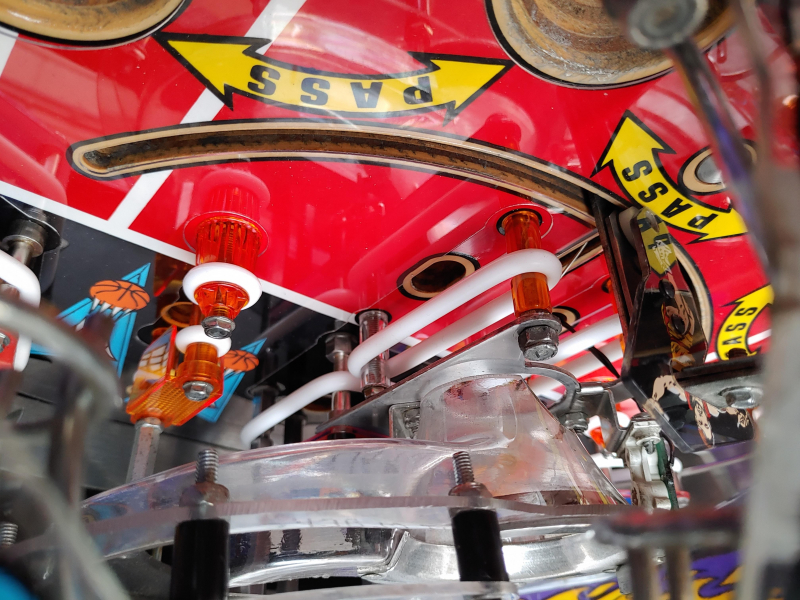

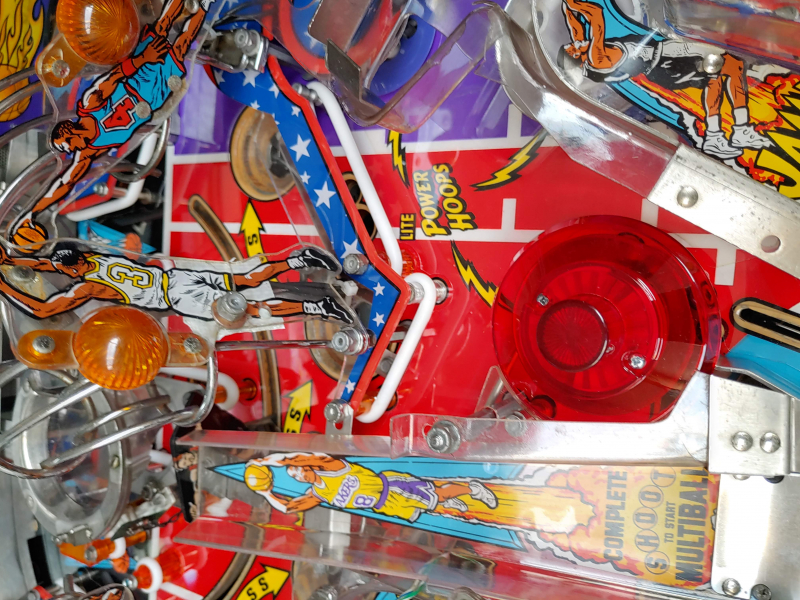

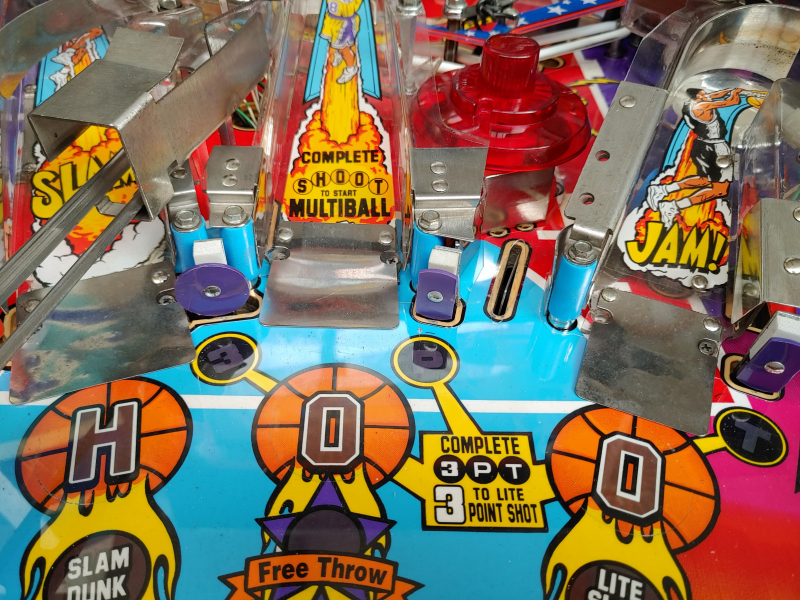

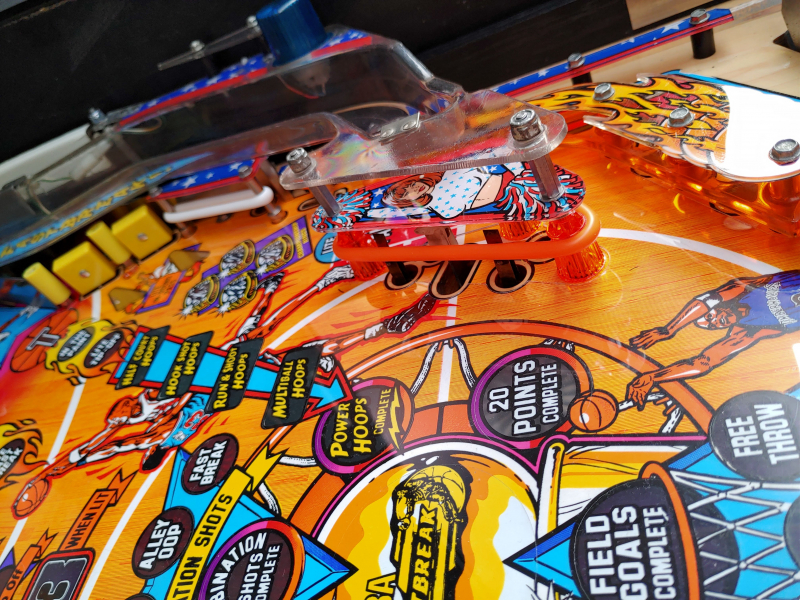

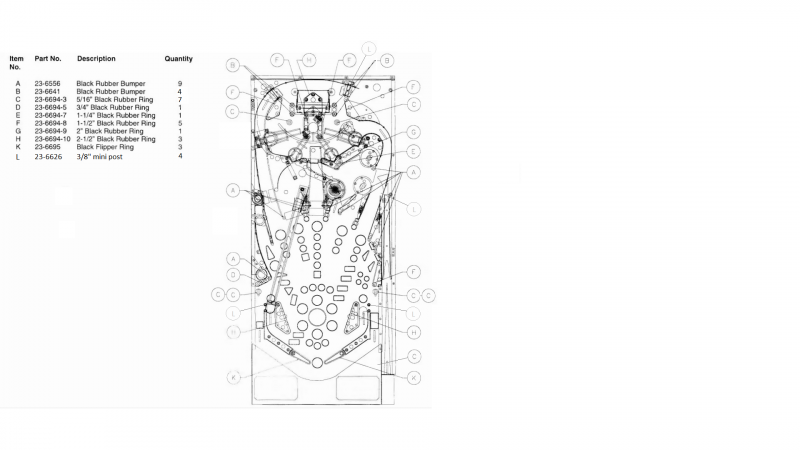

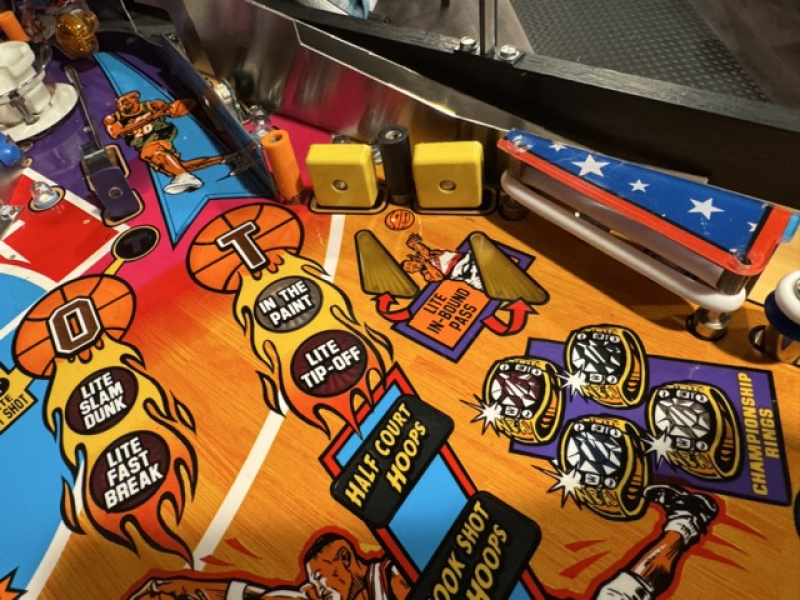

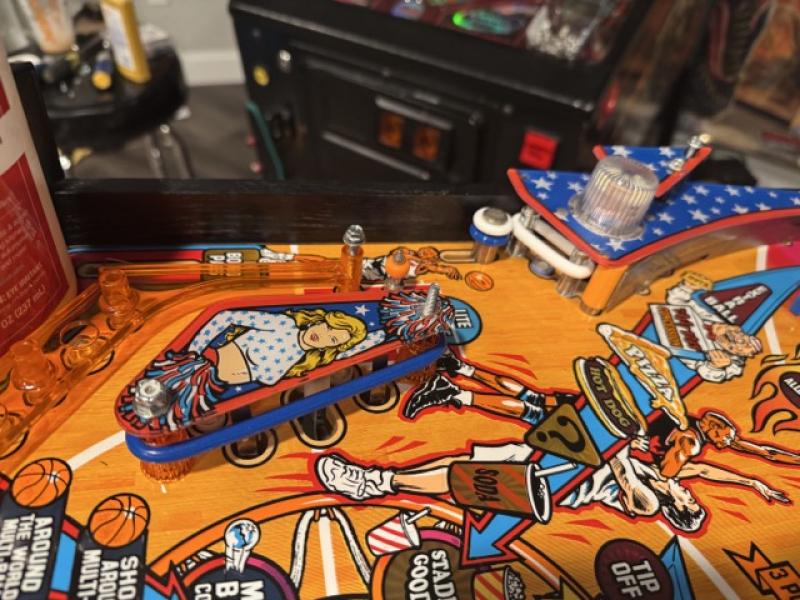

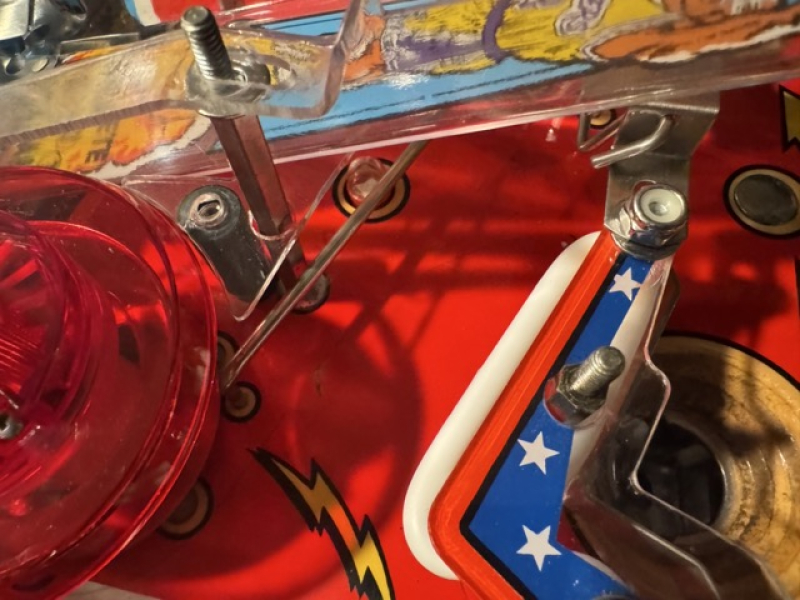

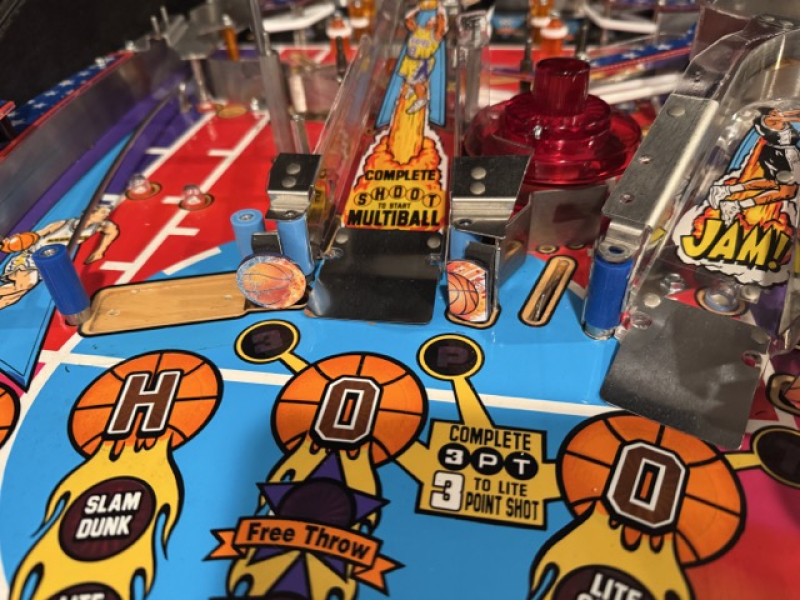

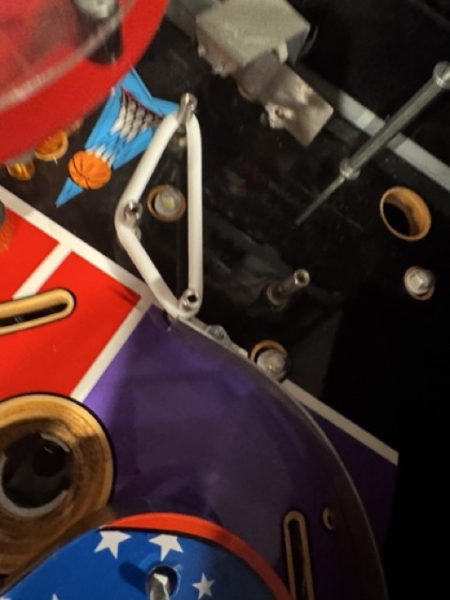

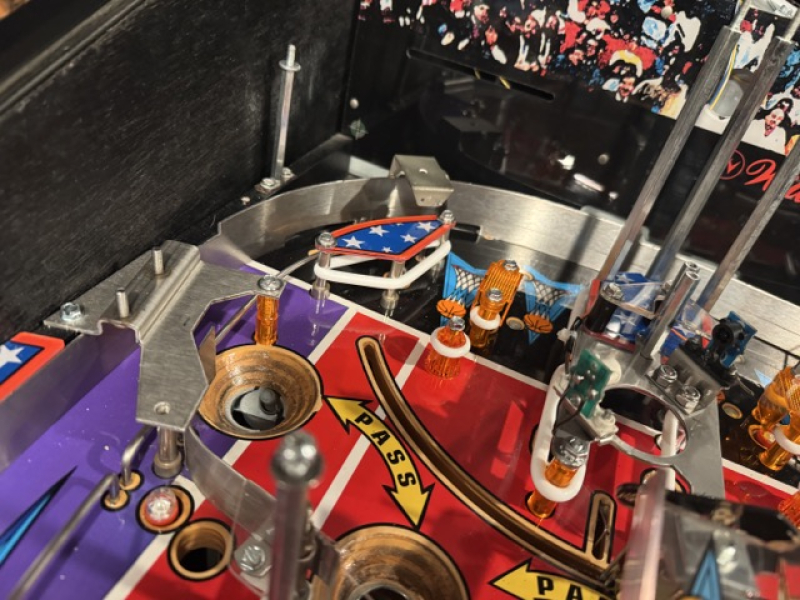

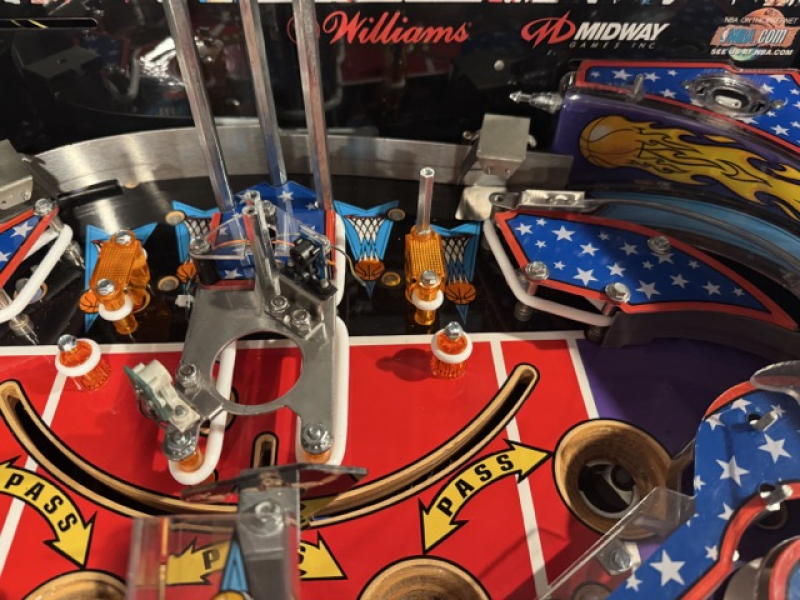

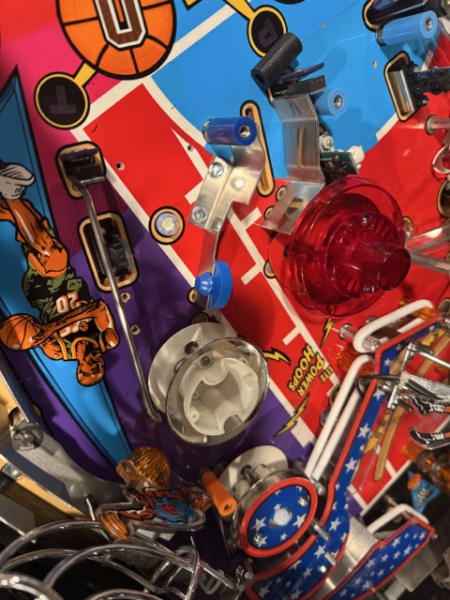

Redid the rubber ring chart in the manual to be correct. Orange rings lower side, White rings upper side. Purple flipper rings on the lower part (to represent the purple in the back of the playfield and on the back of the cabinet). Yellow flipper ring in the backbox animation (to stand out from the orange).

Submitted by: René V. René V.
Submitted on: 2022-06-10 20:43:36 2022-06-10 20:43:36
View Full Kit

Rubber Rings - Flipper Standard
Purple
Qty: 2
Rubber Rings - Flipper Standard
Yellow
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Orange
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - 3/8 Inch O.D.
Orange
Qty: 2
Rubber Rings - 3/8 Inch O.D.
White
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Orange
Qty: 4
Rubber Rings - 5/16 Inch I.D.
White
Qty: 3
Rubber Rings - 3/4 Inch I.D.
White
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 5
Rubber Rings - 3/16 Inch I.D.
White
Qty: 4
Rubber Rings - 2 Inch I.D.
White
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 1
Post Sleeves - Standard
Lt. Blue
Qty: 4
Post Sleeves - Standard
Yellow
Qty: 2
Post Sleeves - Standard
Red
Qty: 1
Post Sleeves - Standard
Purple
Qty: 1
Post Sleeves - Standard
Orange
Qty: 1
