The Shadow Rubber Kits



Midway Manufacturing Company, a subsidiary of WMS Industries, Incorporated , November, 1994
4 Players , 5 Balls

(2)

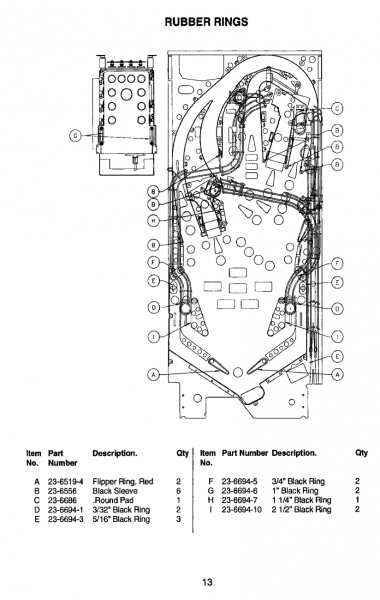

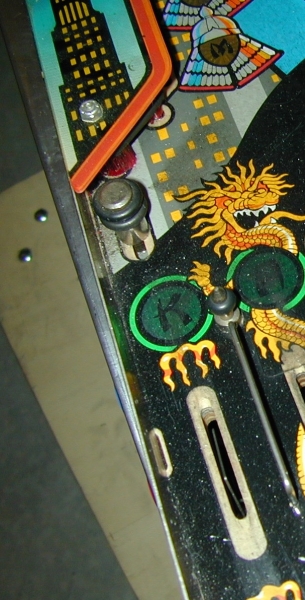

Pulled from The Shadow Manual with following tweaks: - Corrected number of flipper rubbers (manual calls for two, game needs three). - My game and many I've seen have 2x rings on each outlane post so that's what this kit includes (manual only calls for 1x ring on each). - Added ring for mini-post behind center Mongol figure (not pictured in manual). - Manual calls for red flipper rubbers, I went with all black.

Submitted by: Anonymous Anonymous
Submitted on: 2015-03-04 17:45:34 2015-03-04 17:45:34
View Full Kit

Rubber Rings - Flipper Standard
Black
Qty: 3
Post Sleeves - Standard
Black
Qty: 6
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 5
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Black
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Black
Qty: 1
(1)

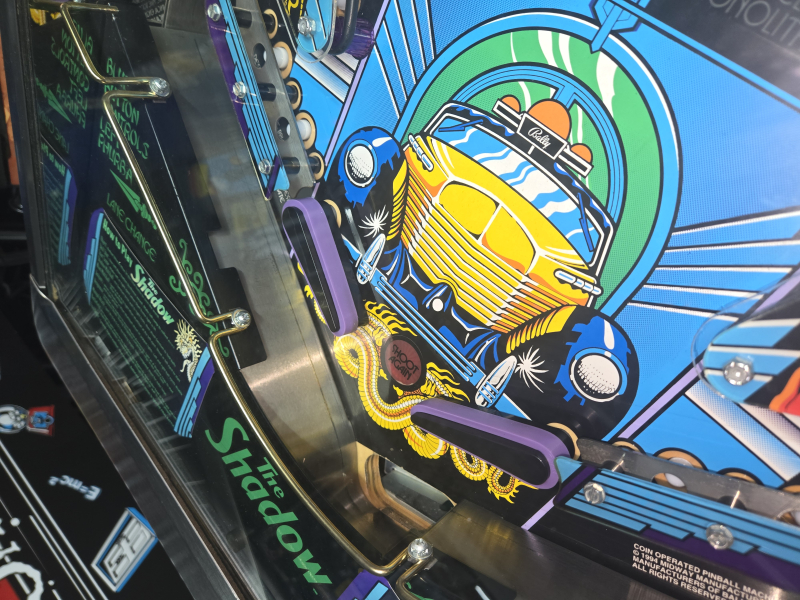

The Shadow in Competition Clear, Purple post rubber, Purple Flipper Rubber

Submitted by: Craig S. Craig S.
Submitted on: 2016-02-17 07:39:45 2016-02-17 07:39:45
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Purple
Qty: 3
Post Sleeves - Standard
Purple
Qty: 6
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 5
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Translucent
Qty: 1
(0)

ordered both black and clear for the sling rubbers (not sure which one will look better) and purple for the flippers.

Submitted by: Anonymous Anonymous
Submitted on: 2016-03-31 15:52:51 2016-03-31 15:52:51
View Full Kit

This kit doesn't have any photos.
Post Sleeves - Standard
Black
Qty: 6
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 5
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Black
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Black
Qty: 1
Rubber Rings - Flipper Standard
Purple
Qty: 3
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
(0)

Kit shown is per manual added 1 extra for the third flipper

Submitted by: Anonymous Anonymous
Submitted on: 2016-12-04 13:16:19 2016-12-04 13:16:19
View Full Kit

This kit doesn't have any photos.
Post Sleeves - Standard
Purple
Qty: 6
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 1
Rubber Rings - 5/16 Inch I.D.
White
Qty: 3
Rubber Rings - 1 Inch I.D.
White
Qty: 1
Rubber Rings - 1 Inch I.D.
White
Qty: 1
Rubber Rings - 3/4 Inch I.D.
White
Qty: 2
Rubber Rings - Flipper Standard
Purple
Qty: 3
Rubber Rings - 7/16 Inch O.D.
White
Qty: 2
(0)

Standard kit minus flippers and green posts

Submitted by: Anonymous Anonymous
Submitted on: 2017-09-21 17:39:18 2017-09-21 17:39:18
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 5
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Black
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Black
Qty: 1
Post Sleeves - Standard
Green
Qty: 6
(1)

Full kit with clear rubbers, grey and black post sleeves and green and yellow flippers. the manual is missing a few post sleeves that are by the vuk for the upper playfield I chose to keep those black

Submitted by: Anonymous Anonymous
Submitted on: 2019-04-17 09:52:40 2019-04-17 09:52:40
View Full Kit

Rubber Rings - Flipper Standard
Green
Qty: 2
Rubber Rings - Flipper Standard
Yellow
Qty: 1
Post Sleeves - Standard
Grey
Qty: 6
Post Sleeves - Standard
Black
Qty: 3
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 5
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Translucent
Qty: 1
(0)

All clear except for purple flipper rubbers, two extra slingshot rubbers

Submitted by: Dagan B. Dagan B.
Submitted on: 2019-05-23 20:12:27 2019-05-23 20:12:27
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Purple
Qty: 3
Post Sleeves - Standard
Translucent
Qty: 6
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 5
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Translucent
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
(0)

Based on another kit with Red flipper rubbers instead of black.

Submitted by: Anonymous Anonymous
Submitted on: 2019-12-11 13:09:09 2019-12-11 13:09:09
View Full Kit

This kit doesn't have any photos.
Post Sleeves - Standard
Black
Qty: 6
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 5
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Black
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Black
Qty: 1
Rubber Rings - Flipper Standard
Red
Qty: 3
(2)

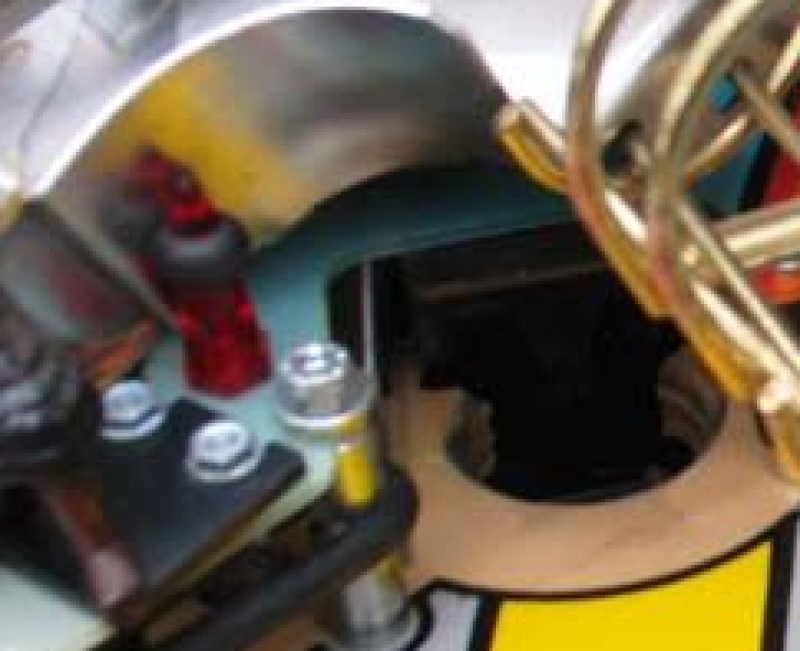

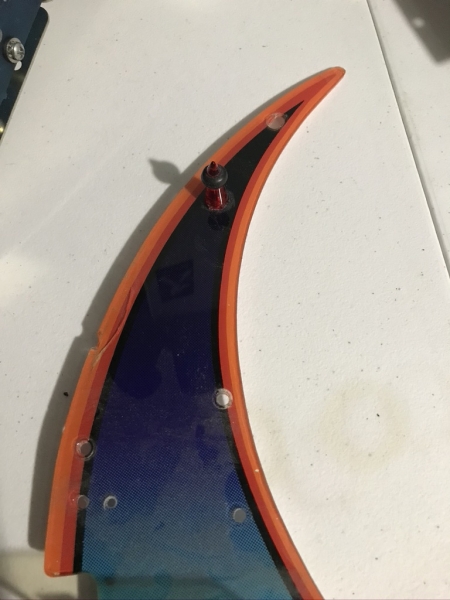

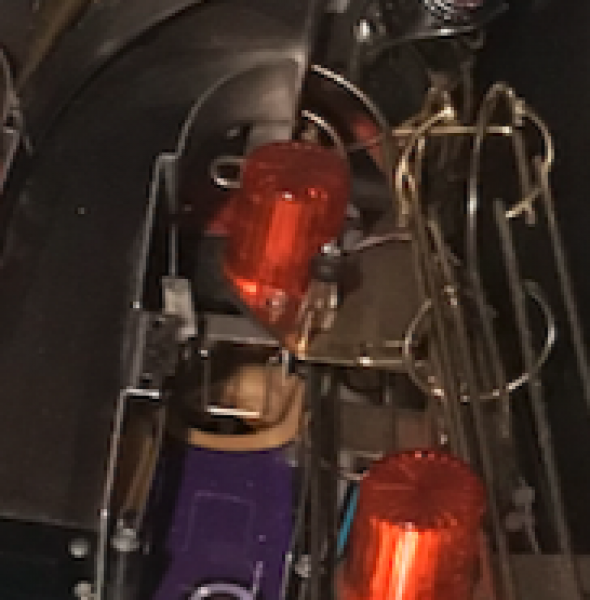

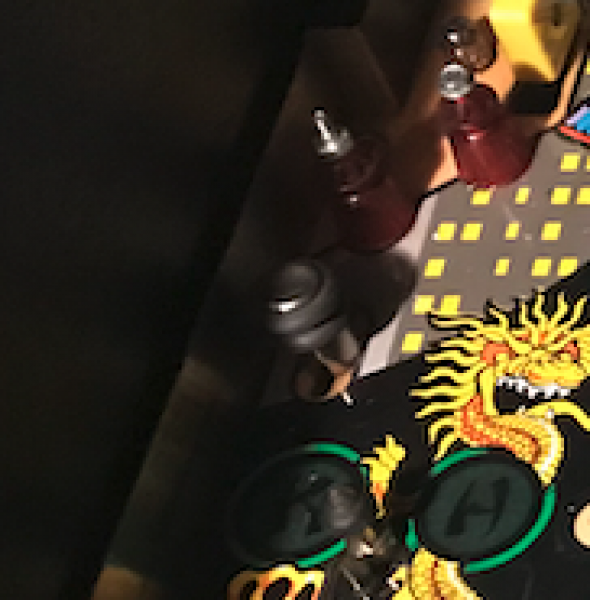

I made this kit to replaces all 20 rings and 6 post sleeves in The Shadow. I went with all black, so adjust as needed. The manual only lists 14 rings, so here are the changes (pics included for reference): (1) Flippers from 2 to 3 (I mean, come on); (2) 5/16" from 3 to 5 (outlane posts have 2 each); (3) 3/8" from 0 to 3 (manual missed the 3 mini-posts in the game; clear post by flasher above the right eject and two red posts on the same plastic...one behind the mongol above the left eject and one toward the tip under the battlefield). I hope this kit helps someone out there. Time for some Peking duck...

Submitted by: E G. E G.
Submitted on: 2020-02-29 09:16:33 2020-02-29 09:16:33
View Full Kit

Rubber Rings - Flipper Standard
Black
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 5
Rubber Rings - 2 1/2 Inch I.D.
Black
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Black
Qty: 3
Post Sleeves - Standard
Black
Qty: 6
(0)

Purple kit as per manual plus fixes to errors. Grey post sleeves. I tried purple posts and it didnt look right.

Submitted by: Anonymous Anonymous
Submitted on: 2021-08-23 19:41:37 2021-08-23 19:41:37
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Purple
Qty: 3
Post Sleeves - Standard
Grey
Qty: 6
Rubber Rings - 7/16 Inch O.D.
Purple
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Purple
Qty: 5
Rubber Rings - 3/4 Inch I.D.
Purple
Qty: 2
Rubber Rings - 1 Inch I.D.
Purple
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Purple
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Purple
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Purple
Qty: 1
(0)

Complete kit. All purple. Best look for Shadow imo

Submitted by: Anonymous Anonymous
Submitted on: 2021-11-12 23:38:33 2021-11-12 23:38:33
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Purple
Qty: 3
Rubber Rings - 5/16 Inch I.D.
Purple
Qty: 5
Rubber Rings - 2 1/2 Inch I.D.
Purple
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Purple
Qty: 2
Rubber Rings - 1 Inch I.D.
Purple
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Purple
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Purple
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Purple
Qty: 3
(0)

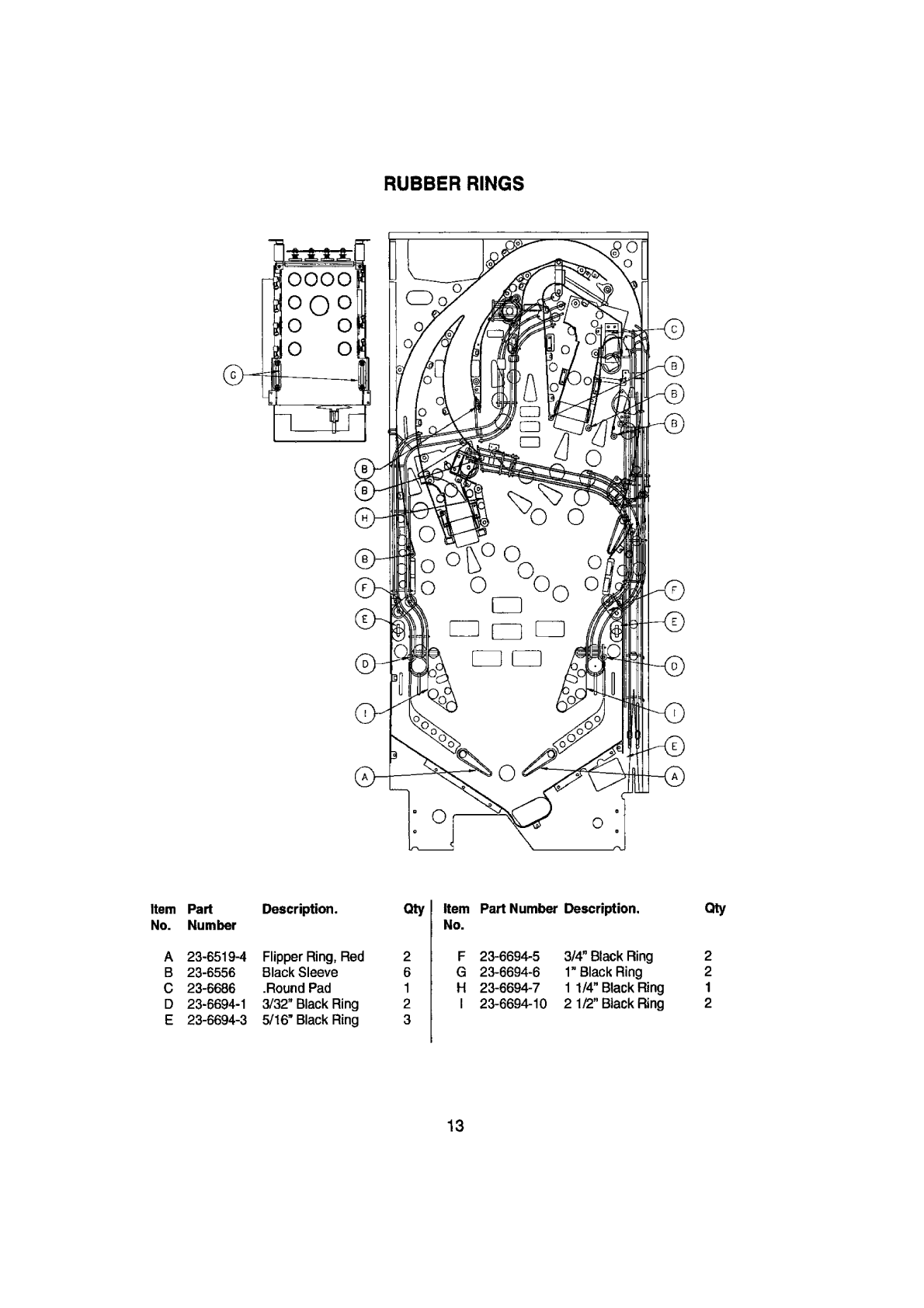

Instead of just clear - or all purple - I used the playfield as color cues for my selections, and going with clear for rubbers that cannot be seen in game play. The kit is accurate in rubber count and sizing. As previously noted - the manual is not entirely correct, but is attached for reference. Validated on 9/19/23.

Submitted by: matt M. matt M.
Submitted on: 2023-09-11 19:46:30 2023-09-11 19:46:30
View Full Kit

Rubber Rings - Flipper Standard
Purple
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Black
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Purple
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Grey
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Translucent
Qty: 3
Post Sleeves - Stern Slim Tapered
Grey
Qty: 6
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Grey
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Grey
Qty: 1
Rubber Rings - Flipper Standard
Yellow
Qty: 1
(0)

Purple post sleeves, blue lower flippers, purple upper flipper, black rings for the battlefield, and clear rings for everything else. Show off those LEDS!

Submitted by: Abe C. Abe C.
Submitted on: 2023-11-22 17:38:57 2023-11-22 17:38:57
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Blue
Qty: 2
Rubber Rings - Flipper Standard
Purple
Qty: 1
Post Sleeves - Standard
Purple
Qty: 6
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Translucent
Qty: 5
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 Inch I.D.
Black
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Translucent
Qty: 1
