World Cup Rubber Kits



Williams Electronics, Incorporated , May, 1978
4 Players

(0)

The listing in the operator's manual is incorrect and incomplete. I bought this machine in the Spring of 2021 and am swapping out all the rubber rings, caps, posts, tips, nubs, etc. This list is a work in progress, but I believe it is correct. I will update this if needed. I added the post caps as I like to use these to match the color of the part of the plastic where they go on. (Purple cap if the plastic is purple where the cap goes, etc).

Submitted by: Mark B. Mark B.
Submitted on: 2021-06-03 13:11:31 2021-06-03 13:11:31
View Full Kit

This kit doesn't have any photos.
(0)

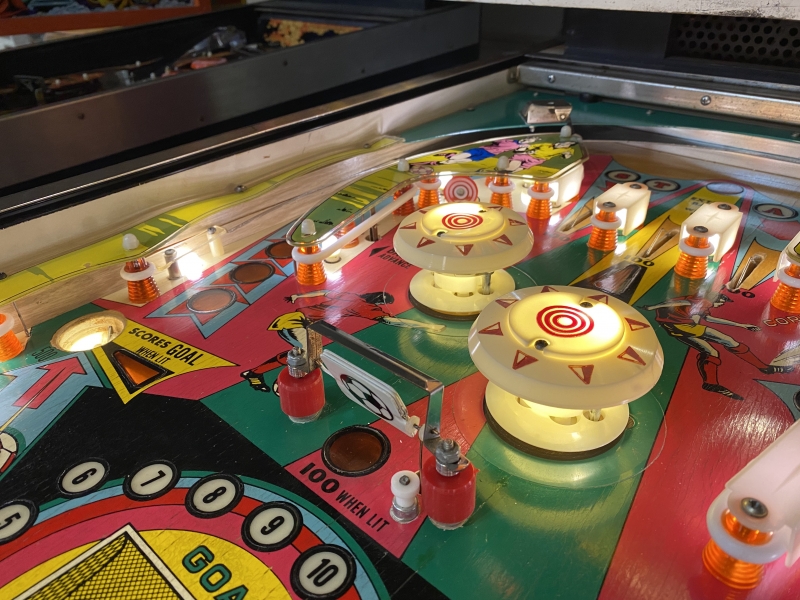

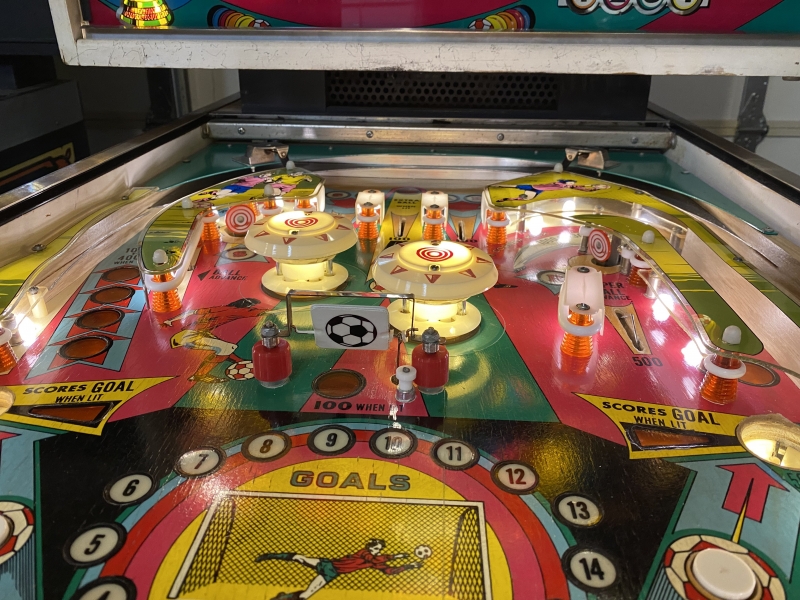

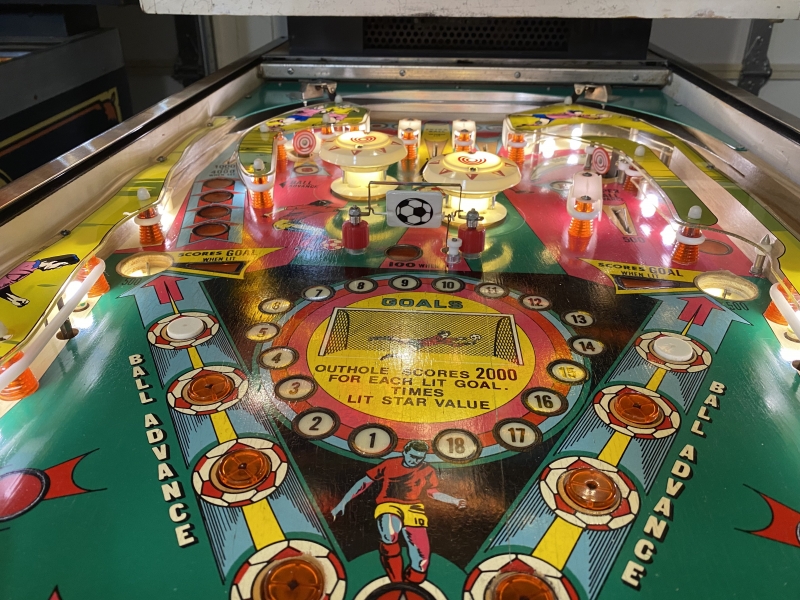

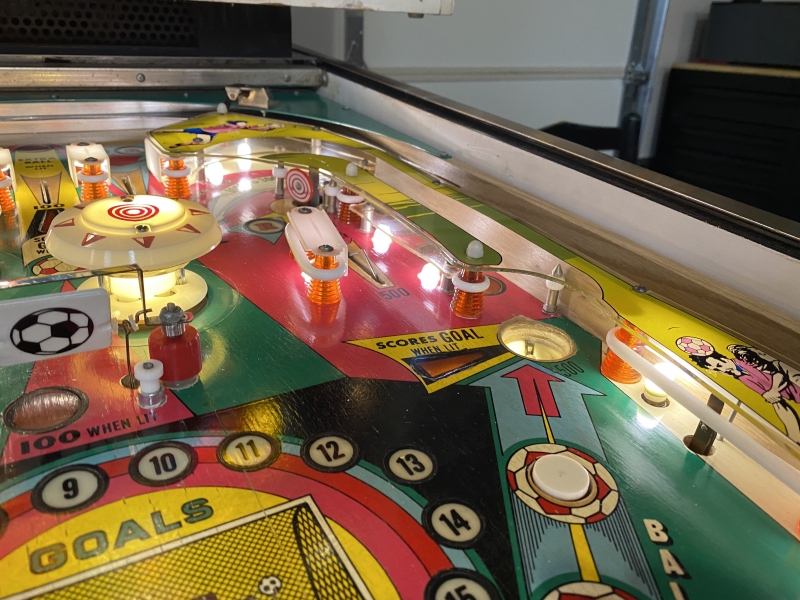

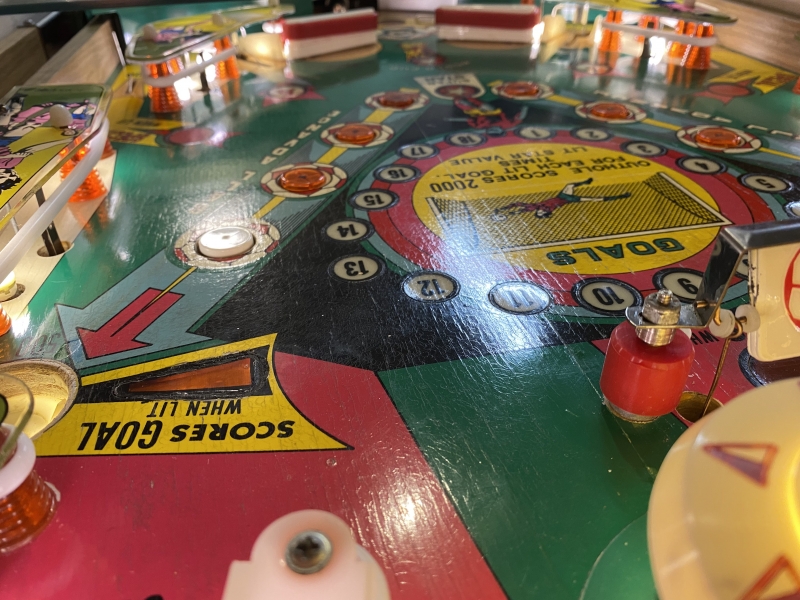

White ring kit with red accent rings. Photos included to help show where rings are installed. Uses 3/4 bumpers for posts around spinner.

Submitted by: David D. David D.
Submitted on: 2022-05-02 21:40:52 2022-05-02 21:40:52
View Full Kit

Rubber Rings - Shooter Tip
Red
Qty: 1
Rubber Rings - Flipper Standard
Red
Qty: 2
Post Sleeves - 3/4 Bumper
Red
Qty: 2
Misc - Tee Post
White
Qty: 1
Rubber Rings - 3/8 Inch O.D.
White
Qty: 1
Rubber Rings - 7/16 Inch O.D.
White
Qty: 2
Rubber Rings - 5/16 Inch I.D.
White
Qty: 13
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 2
Rubber Rings - 2 Inch I.D.
White
Qty: 3
Rubber Rings - 2 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - 3 Inch I.D.
White
Qty: 2
(0)

Translucent Bands, Red Flippers - Based on actual install and Manual. Substitute: 3/16 rings for 5/16 rings. The 5/16 rings are too big and fit loosely on posts.

Submitted by: Anonymous Anonymous
Submitted on: 2022-05-27 13:40:53 2022-05-27 13:40:53
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 13
Rubber Rings - 3/8 Inch O.D.
Translucent
Qty: 4
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 3
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 2 1/2 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 3 Inch I.D.
Translucent
Qty: 2
Post Sleeves - 3/4 Bumper
Translucent
Qty: 2
