Big Game Rubber Kits



Stern Electronics, Incorporated , March, 1980
4 Players

(0)

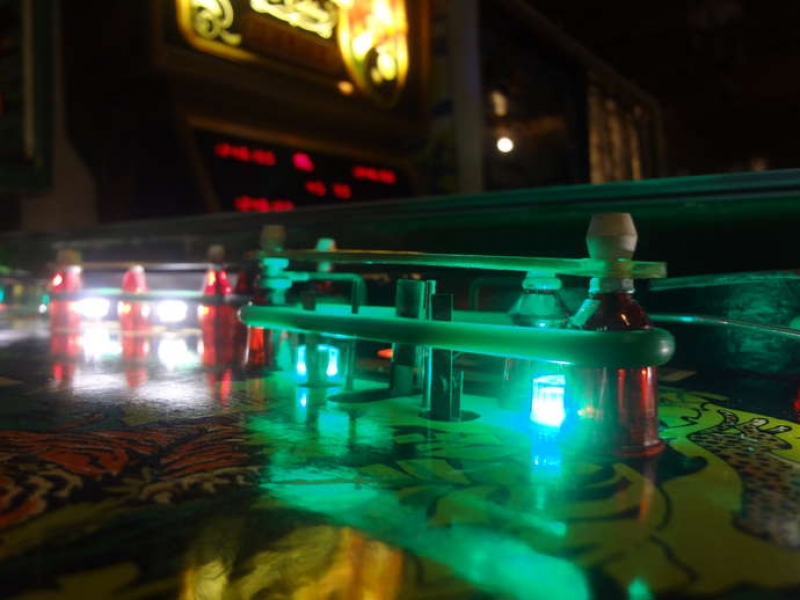

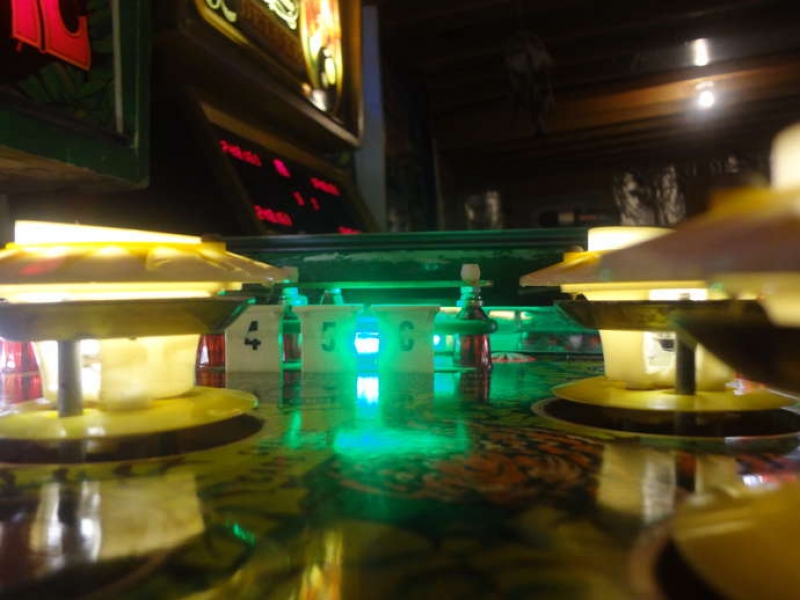

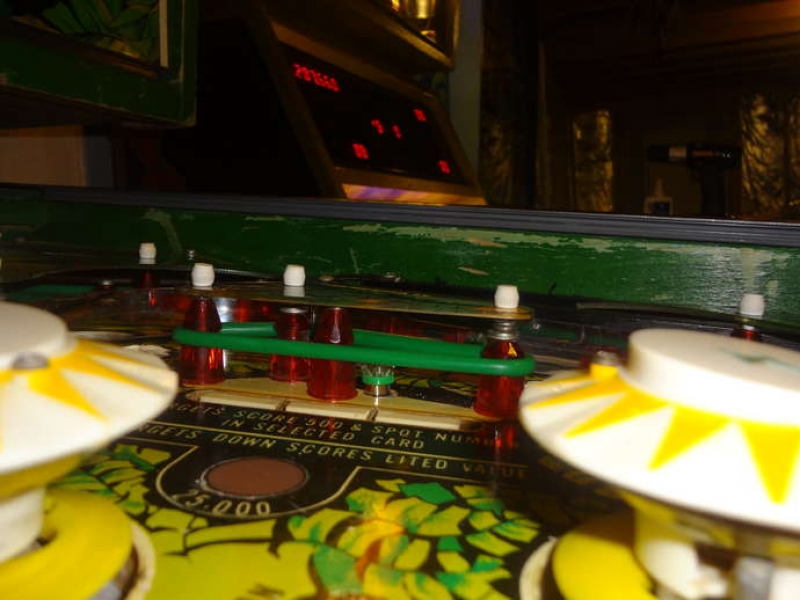

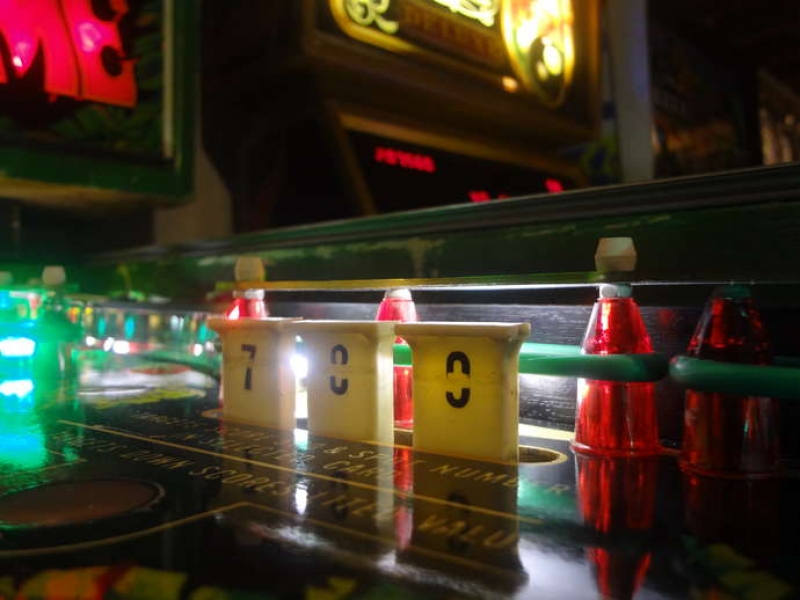

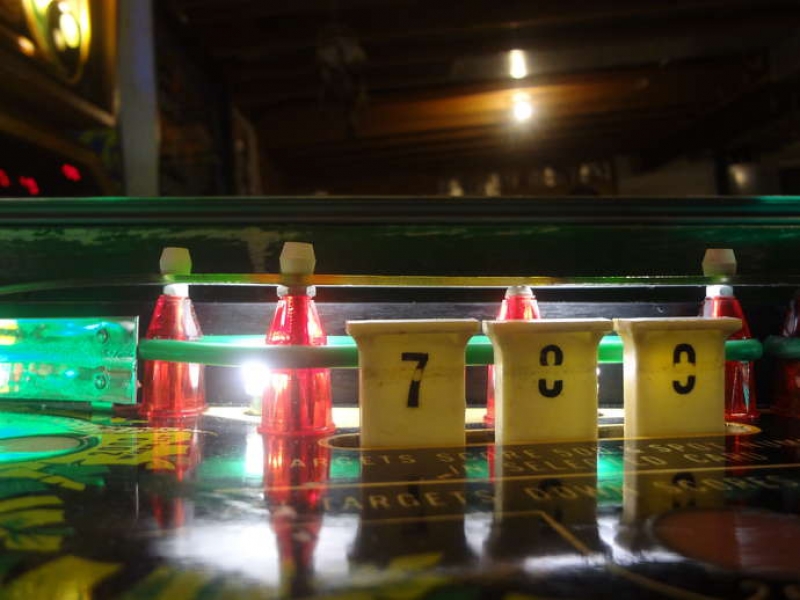

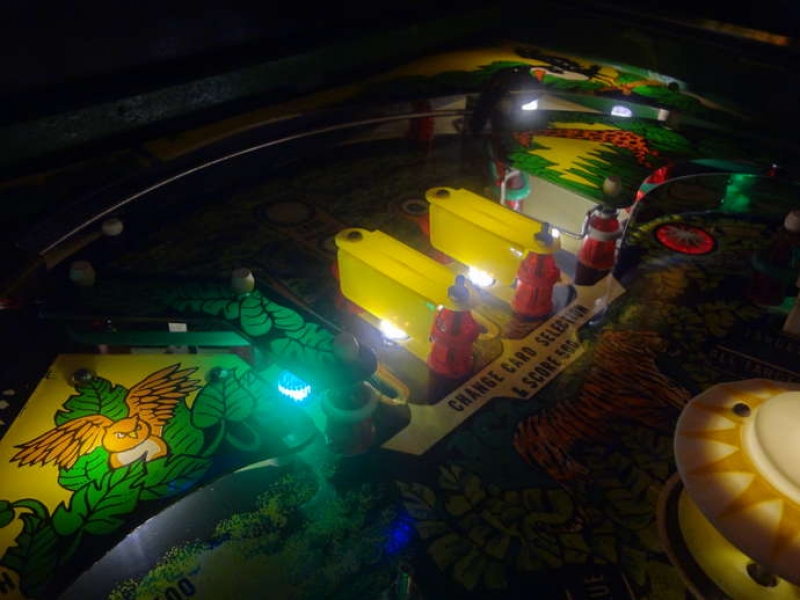

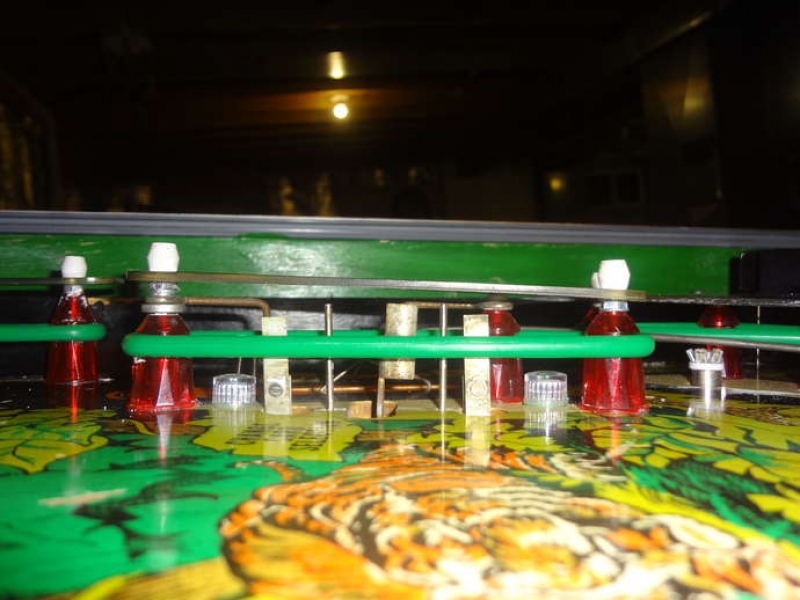

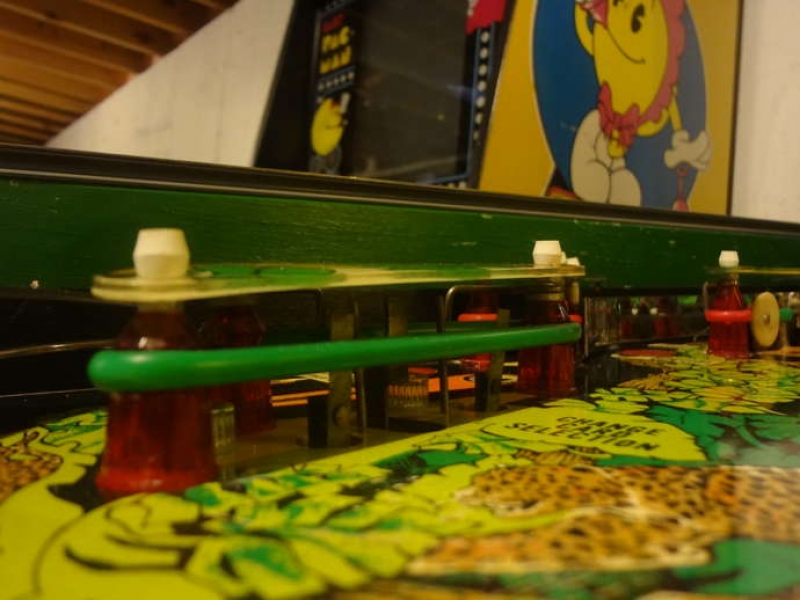

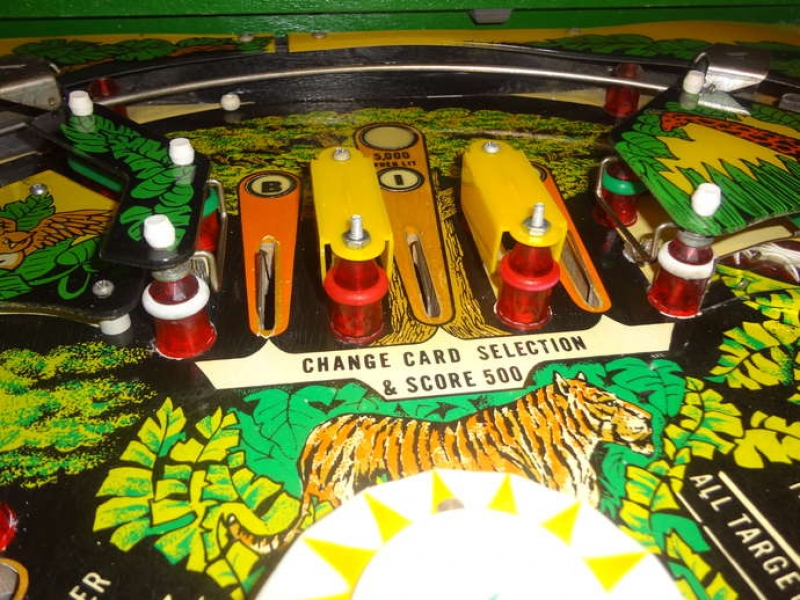

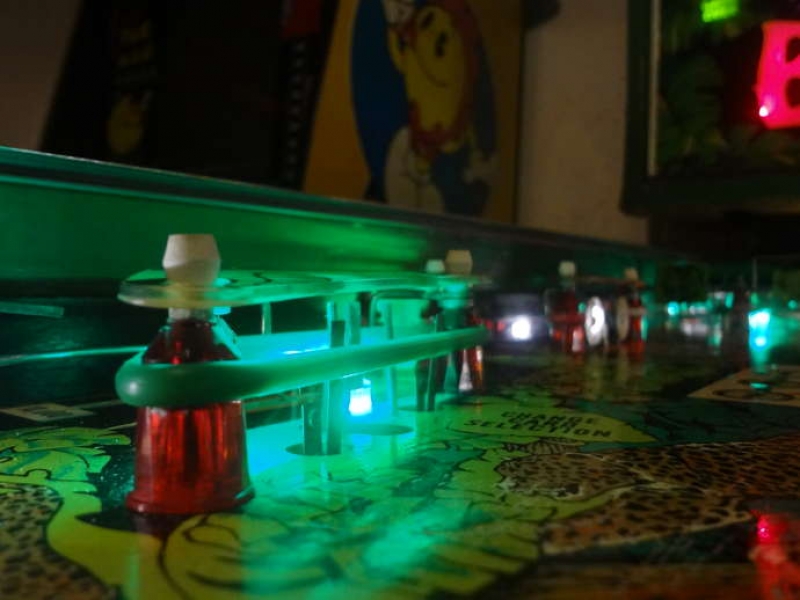

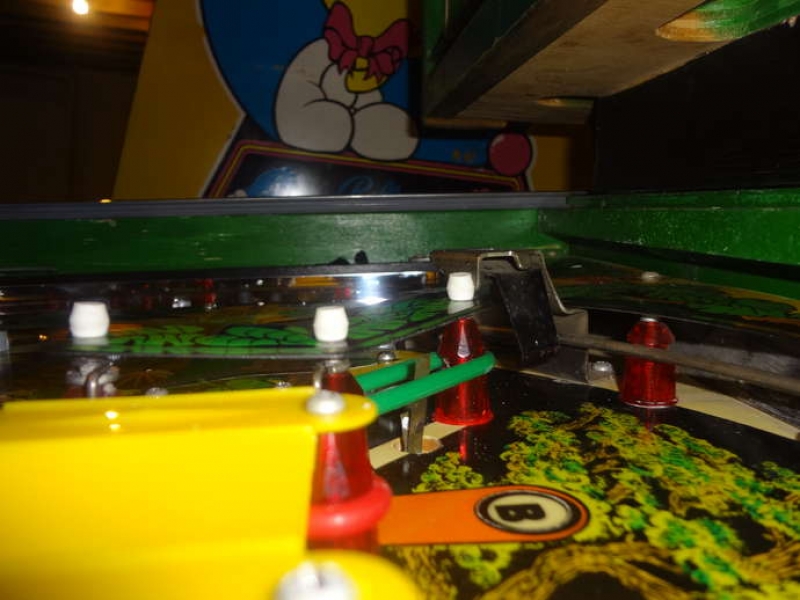

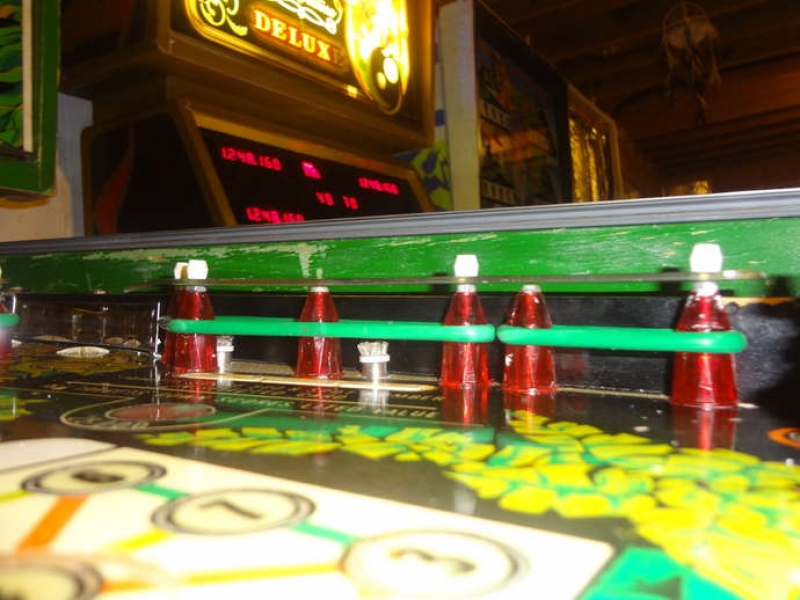

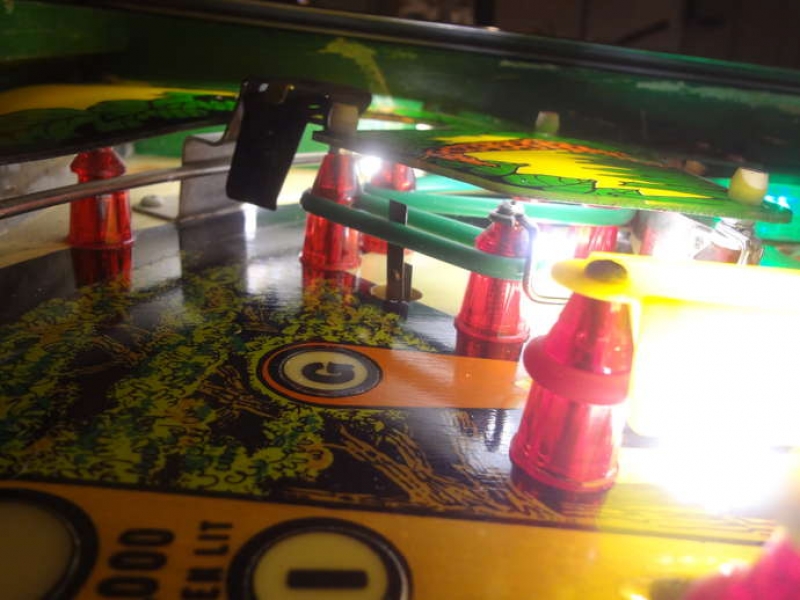

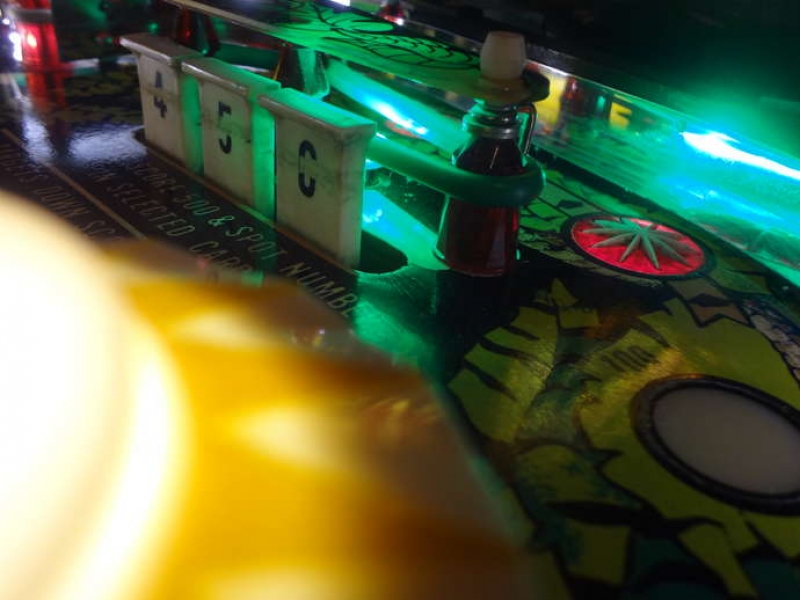

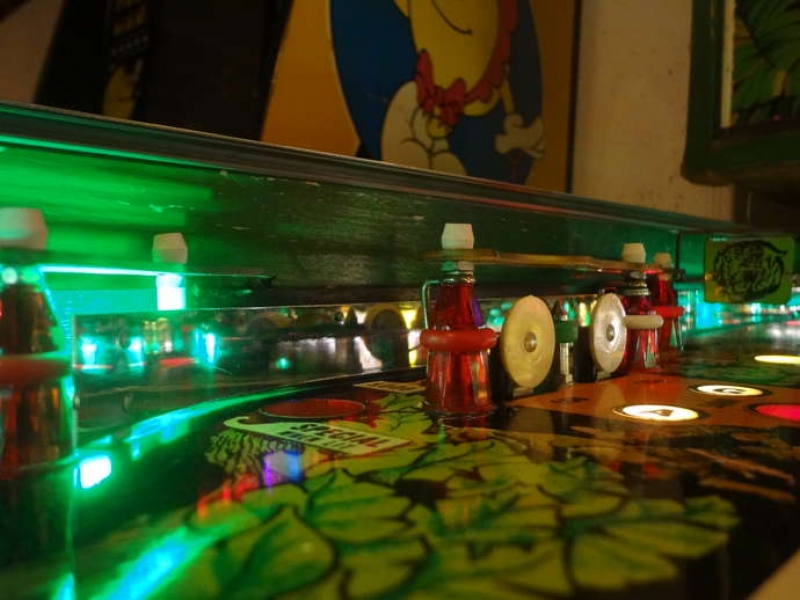

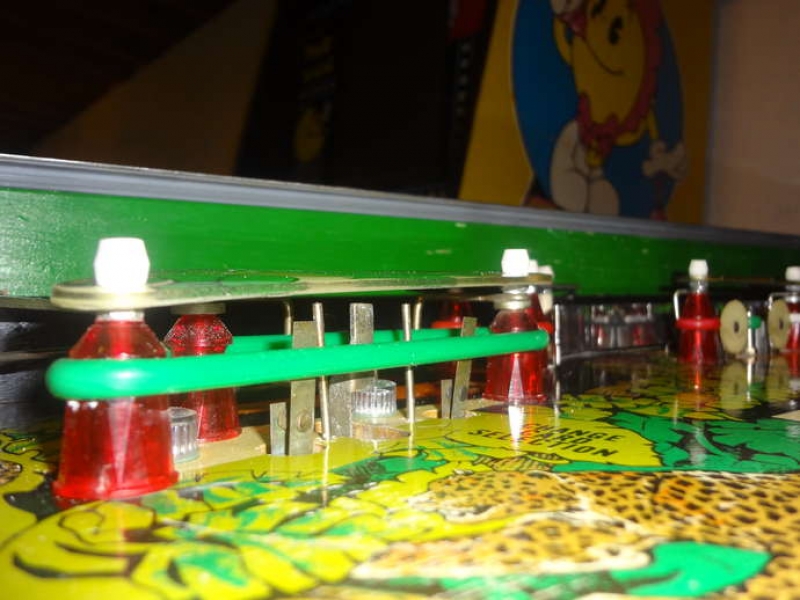

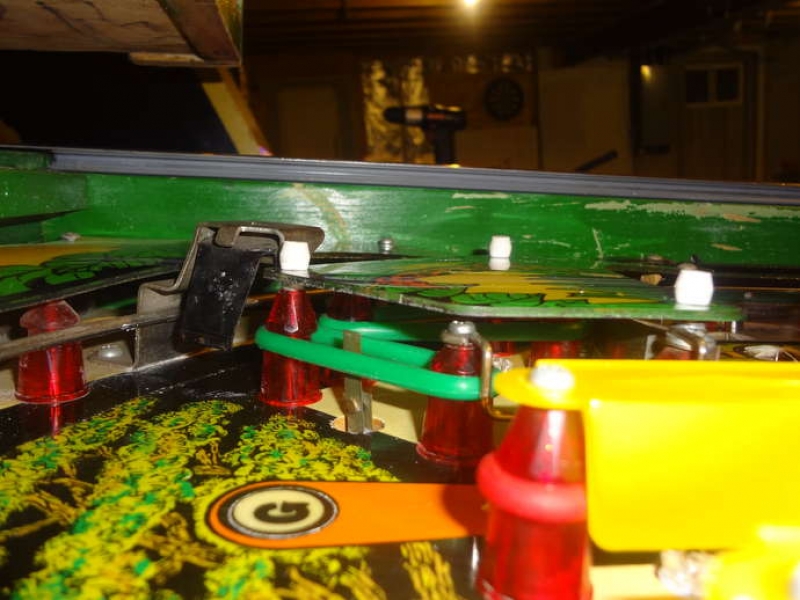

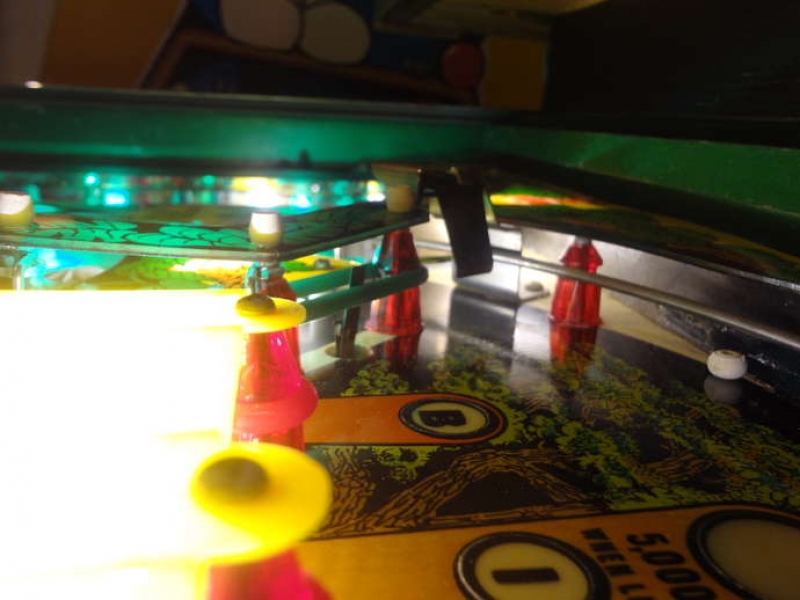

I have included extra rings in this kit as this game has issues with bricking drop targets. I have found that using a smaller ring will help greatly. these extra rings allow you to choose which work best for your game. I believe there are 3-5 extra larger sized rings in this kit. I also like to color match star posts so that is why I picked red for all of those.

Submitted by: erik w. erik w.
Submitted on: 2015-03-15 09:48:36 2015-03-15 09:48:36
View Full Kit

Rubber Rings - 1 Inch I.D.
Green
Qty: 3
Rubber Rings - 1 1/2 Inch I.D.
Green
Qty: 3
Rubber Rings - 2 1/2 Inch I.D.
Green
Qty: 5
Rubber Rings - 3 Inch I.D.
Green
Qty: 1
Rubber Rings - 2 Inch I.D.
Green
Qty: 5
Rubber Rings - 5/16 Inch I.D.
Red
Qty: 17
(0)

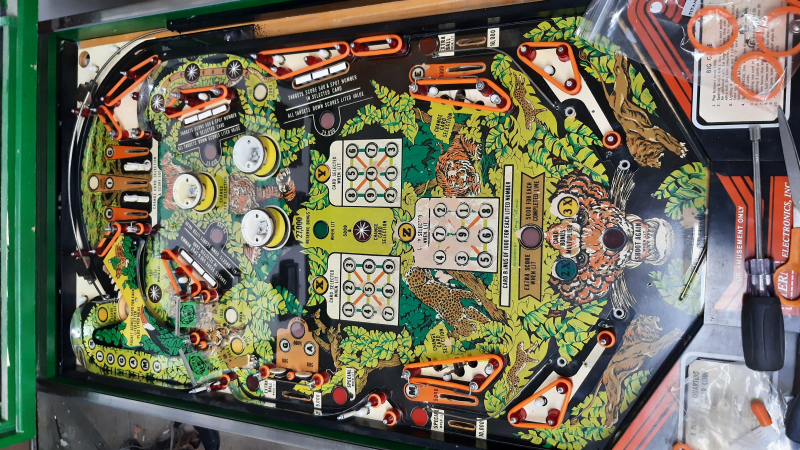

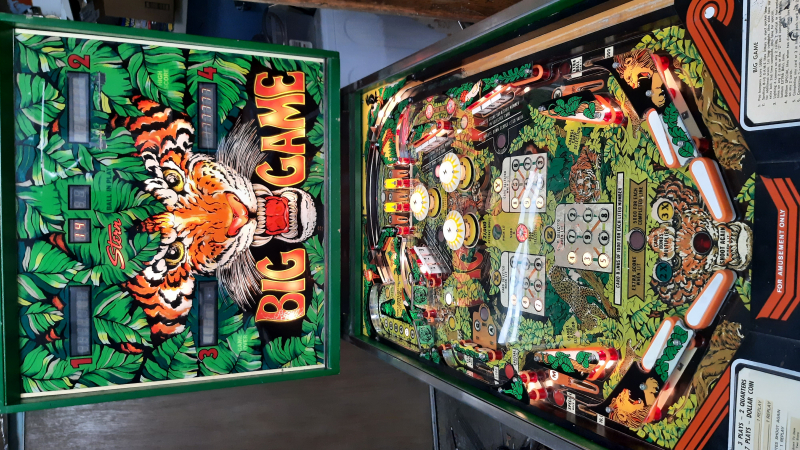

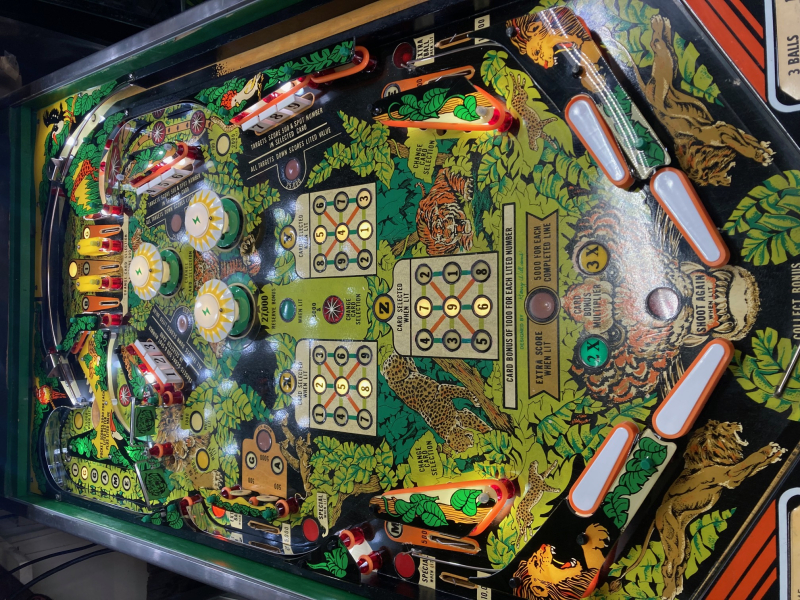

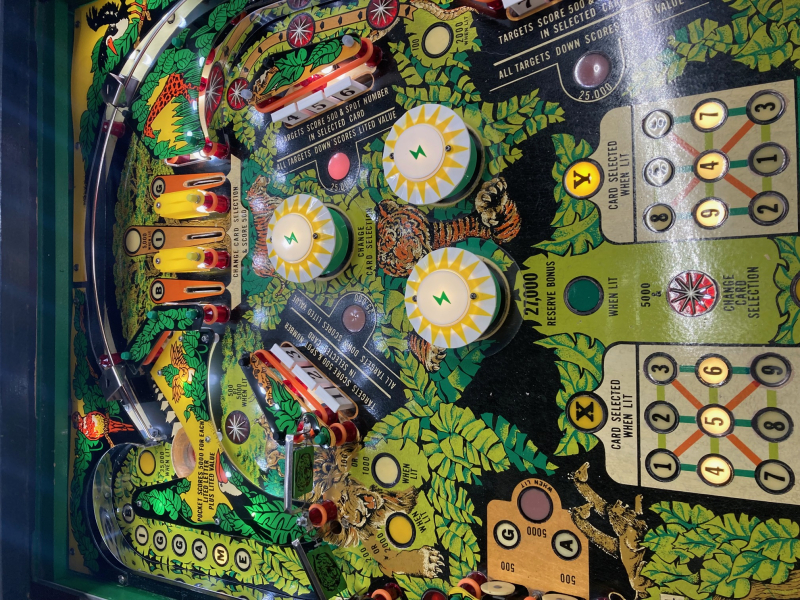

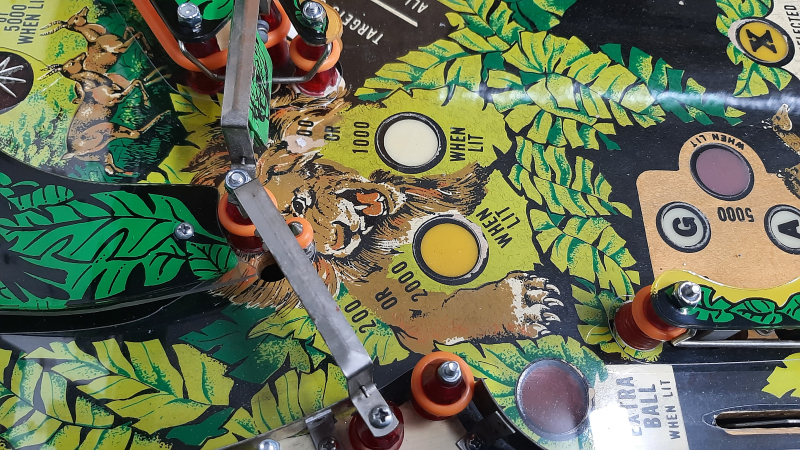

[Tested and Complete] I made this kit using a complete set of titan rubbers on the actual game to build this out, therefore it doesn't match the manual in some places. The right outlane post was set to medium on my game. The kit uses all orange to contrast with the green and to help highlight the orange playfield features. Here's a written guide to installation: (1) 3" - 7-8-9 bank (2) 2-3/4" - Slingshots (2) 2-1/2" - Top of shooter lane and 4-5-6 bank (1) 2" - 1-2-3 bank (2) 1-3/4" - Flanking the flippers under the inlane plastic (1) 1-1/2" - Above right outlane (2) 1-1/4" - Flanking top lanes (16) 5/16" ID - Star posts (2) 7/16" OD - Spike posts (4) Flipper rubbers (1) Shooter tip

Submitted by: Anonymous Anonymous
Submitted on: 2023-01-03 12:01:45 2023-01-03 12:01:45
View Full Kit

Rubber Rings - 3 Inch I.D.
Orange
Qty: 1
Rubber Rings - 2 3/4 Inch I.D.
Orange
Qty: 2
Rubber Rings - 2 1/2 Inch I.D.
Orange
Qty: 2
Rubber Rings - 2 Inch I.D.
Orange
Qty: 1
Rubber Rings - 1 3/4 Inch I.D.
Orange
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
Orange
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Orange
Qty: 2
Rubber Rings - 5/16 Inch I.D.
Orange
Qty: 16
Rubber Rings - 7/16 Inch O.D.
Orange
Qty: 2
Rubber Rings - Flipper Standard
Orange
Qty: 4
Rubber Rings - Shooter Tip
Orange
Qty: 1
(0)

Sorry I did a bulk order but everything is orange.

Submitted by: Anonymous Anonymous
Submitted on: 2024-02-12 15:27:09 2024-02-12 15:27:09
View Full Kit

Rubber Rings - 2 1/2 Inch I.D.
Orange
Qty: 4
