Willy Wonka And The Chocolate Factory Rubber Kits



Jersey Jack Pinball, Inc. , 2019
4 Players

(2)

Willy Wonka by Jersey Jack Pinball Ring Kit. This kit is missing 1/2" ring (1) that was not available from Titan.

Submitted by: Louis C. Louis C.
Submitted on: 2019-12-01 15:01:46 2019-12-01 15:01:46
View Full Kit

Rubber Rings - 3/4 Inch I.D.
White
Qty: 1
Rubber Rings - 1 Inch I.D.
White
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - 2 Inch I.D.
White
Qty: 2
Rubber Rings - 3/16 Inch I.D.
White
Qty: 2
Rubber Rings - 7/16 Inch O.D.
White
Qty: 6
Post Sleeves - Standard
White
Qty: 3
Rubber Rings - Flipper Standard
Red
Qty: 4
Rubber Rings - 3/8 Inch O.D.
White
Qty: 2
(0)

Wonka, but with see through titan rubbers and Red where not available.

Submitted by: Anonymous Anonymous
Submitted on: 2019-12-14 18:33:30 2019-12-14 18:33:30
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 6
Post Sleeves - Standard
Red
Qty: 3
Rubber Rings - Flipper Standard
Blue
Qty: 4
Rubber Rings - 3/8 Inch O.D.
Translucent
Qty: 2
(0)

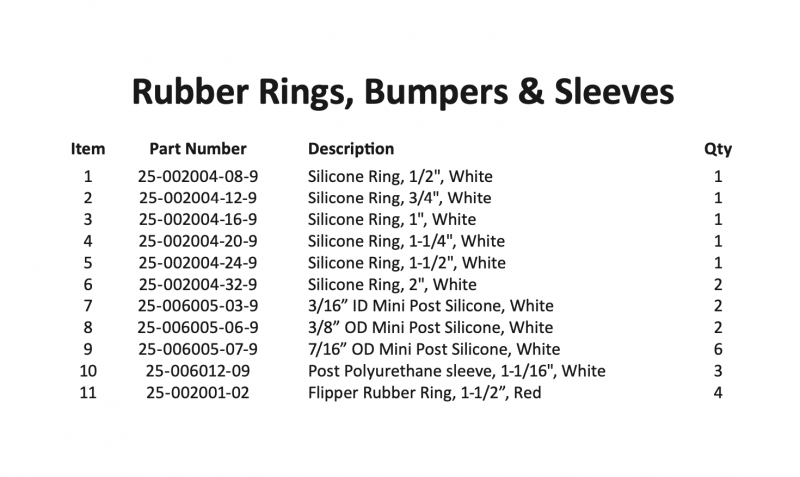

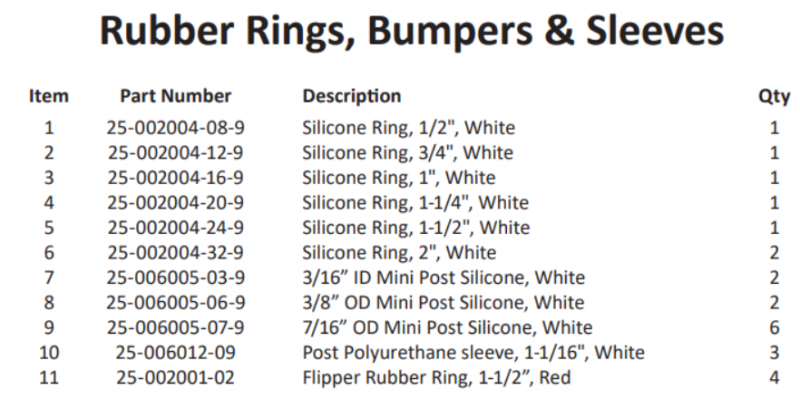

No 1/2" ring as noted on others. All rings are purple, because that's what my wife wanted! I included standard posts to replace JJP 25-006012-09, but note that Titan states OD=0.472" and most other sources state OD=7/16"=0.4375" for this post. Small but visible - maybe within tolerance? Finally, I doubled quantity of flippers, and tripled quantity of slings, because those wear out faster.

Submitted by: Adam C. Adam C.
Submitted on: 2020-04-01 16:26:30 2020-04-01 16:26:30
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/4 Inch I.D.
Purple
Qty: 1
Rubber Rings - 1 Inch I.D.
Purple
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Purple
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Purple
Qty: 1
Rubber Rings - 2 Inch I.D.
Purple
Qty: 6
Rubber Rings - 3/16 Inch I.D.
Purple
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Purple
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Purple
Qty: 6
Rubber Rings - Flipper Standard
Red
Qty: 8
Rubber Rings - Shooter Tip
Purple
Qty: 1
(0)

Clear set with Flipper Rubbers in Blue, Red, and Purple.

Submitted by: Anonymous Anonymous
Submitted on: 2020-05-03 15:02:53 2020-05-03 15:02:53
View Full Kit

This kit doesn't have any photos.
Rubber Rings - Flipper Standard
Red
Qty: 4
Rubber Rings - Flipper Standard
Purple
Qty: 4
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 1
(0)

Clear set with Blue and Red Flipper rings

Submitted by: Anonymous Anonymous
Submitted on: 2020-05-03 15:11:27 2020-05-03 15:11:27
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 1
Rubber Rings - Flipper Standard
Red
Qty: 4
Verified
(0)

As closely matched to factory as possible. Subs include: 7/16" replacing 1/2" (not available from Titan) Pink flipper rings

Submitted by: Derek S. Derek S.
Submitted on: 2020-07-27 08:20:44 2020-07-27 08:20:44
View Full Kit

Rubber Rings - 7/16 Inch I.D.
White
Qty: 1
Rubber Rings - 3/4 Inch I.D.
White
Qty: 1
Rubber Rings - 1 Inch I.D.
White
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
White
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
White
Qty: 1
Rubber Rings - 2 Inch I.D.
White
Qty: 2
Rubber Rings - 3/16 Inch I.D.
White
Qty: 2
Rubber Rings - 3/8 Inch O.D.
White
Qty: 2
Rubber Rings - 7/16 Inch O.D.
White
Qty: 6
Post Sleeves - Stern Slim Tapered
White
Qty: 3
Rubber Rings - Flipper Standard
Pink
Qty: 4
(0)

Clear with blue flipper rubber.

Submitted by: Anonymous Anonymous
Submitted on: 2021-03-11 20:23:03 2021-03-11 20:23:03
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 7/16 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 4
Rubber Rings - 3/8 Inch O.D.
Translucent
Qty: 4
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 12
Post Sleeves - Standard
Translucent
Qty: 6
Rubber Rings - Flipper Standard
Blue
Qty: 8
(0)

Clear Kit w/Red Flippers - yellow posts

Submitted by: Anonymous Anonymous
Submitted on: 2021-11-29 21:13:49 2021-11-29 21:13:49
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 3/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Translucent
Qty: 1
Rubber Rings - 2 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Translucent
Qty: 2
Rubber Rings - 7/16 Inch O.D.
Translucent
Qty: 6
Post Sleeves - Standard
Yellow
Qty: 3
Rubber Rings - Flipper Standard
Red
Qty: 4
Rubber Rings - 3/8 Inch O.D.
Translucent
Qty: 2
(0)

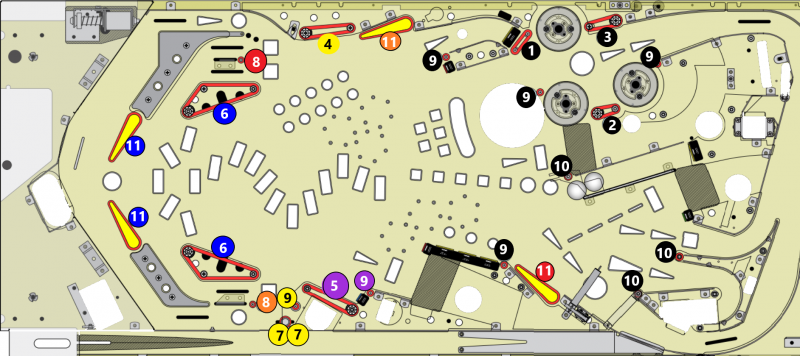

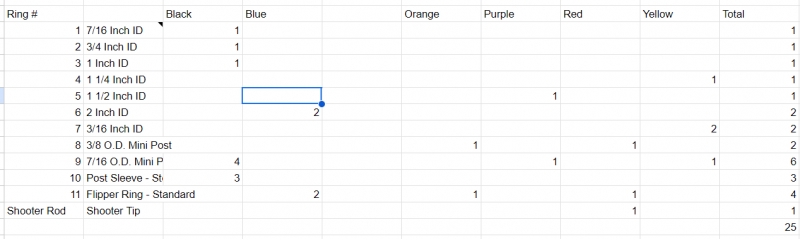

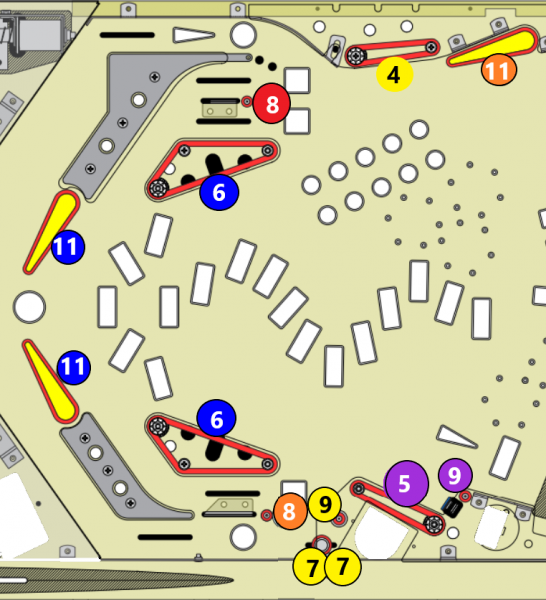

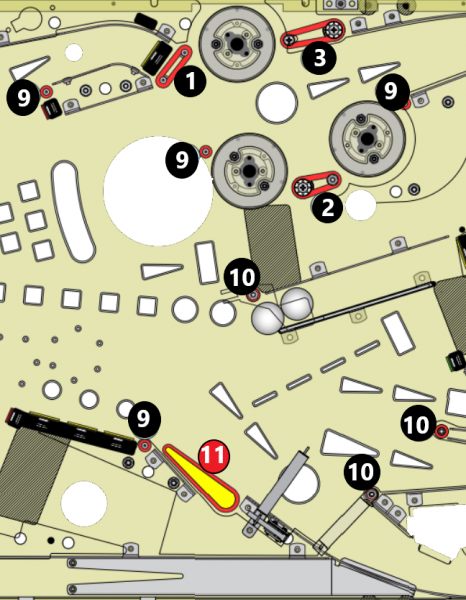

JJP Willy Wonka and the Chocolate Factory * Lots of color in this kit, where it makes sense. Designed to emphasize the candy explosion that is this game. The manual calls for a 1/2" rubber but Titan doesn't make that size so 7/16" is substituted (#1). The manual doesn't specify a shooter tip but I have added one in this kit. The attached pictures make it easy to identify which rubbers go where.

Submitted by: John L. John L.
Submitted on: 2023-11-16 19:10:18 2023-11-16 19:10:18
View Full Kit

Rubber Rings - 7/16 Inch I.D.
Black
Qty: 1
Rubber Rings - 3/4 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 Inch I.D.
Black
Qty: 1
Rubber Rings - 1 1/4 Inch I.D.
Yellow
Qty: 1
Rubber Rings - 1 1/2 Inch I.D.
Purple
Qty: 1
Rubber Rings - 2 Inch I.D.
Blue
Qty: 2
Rubber Rings - 3/16 Inch I.D.
Yellow
Qty: 2
Rubber Rings - 3/8 Inch O.D.
Orange
Qty: 1
Rubber Rings - 3/8 Inch O.D.
Red
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Black
Qty: 4
Rubber Rings - 7/16 Inch O.D.
Purple
Qty: 1
Rubber Rings - 7/16 Inch O.D.
Yellow
Qty: 1
Post Sleeves - Stern Slim Tapered
Black
Qty: 3
Rubber Rings - Flipper Standard
Blue
Qty: 2
Rubber Rings - Flipper Standard
Orange
Qty: 1
Rubber Rings - Flipper Standard
Red
Qty: 1
Rubber Rings - Shooter Tip
Red
Qty: 1
(0)

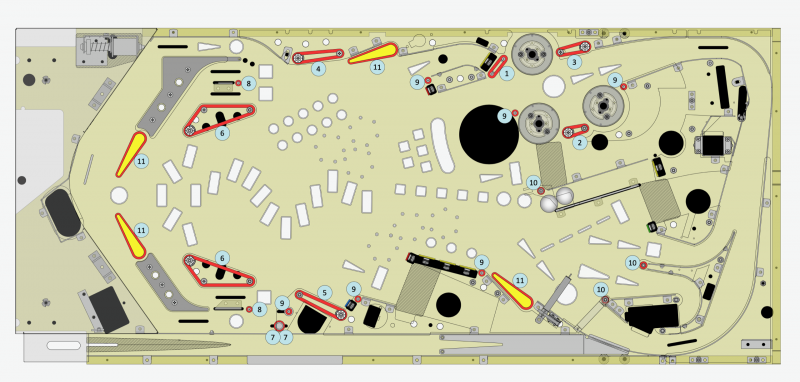

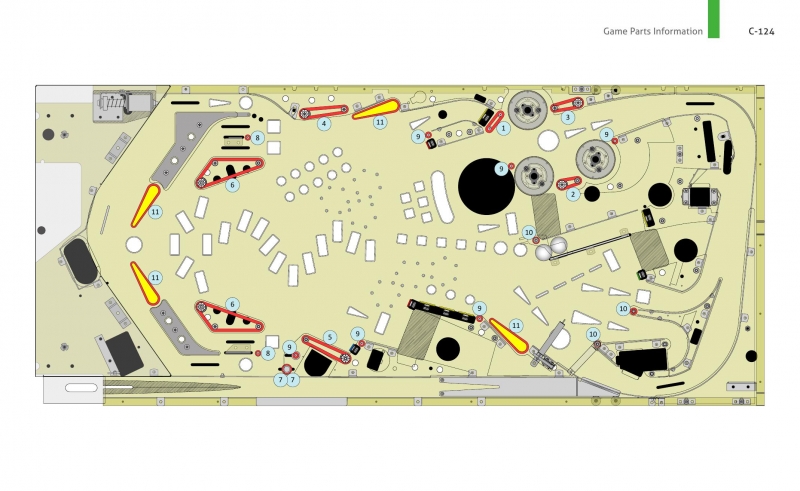

Item 11 on the manual page ring diagram; part # 25-002001-02; 1 1/2" red - I need to order 4 total

Submitted by: Anonymous Anonymous
Submitted on: 2024-01-07 13:46:28 2024-01-07 13:46:28
View Full Kit

This kit doesn't have any photos.
Rubber Rings - 1 1/2 Inch I.D.
Red
Qty: 4
