(0)

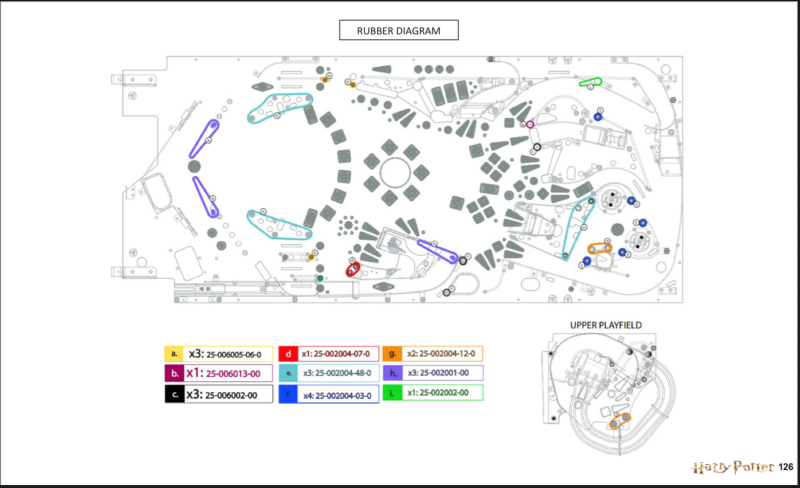

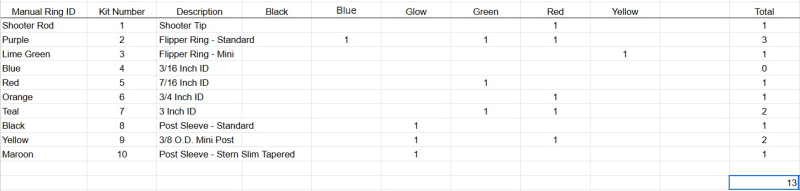

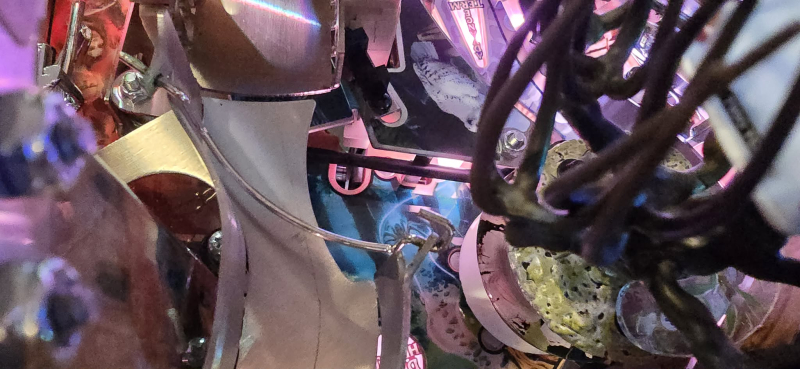

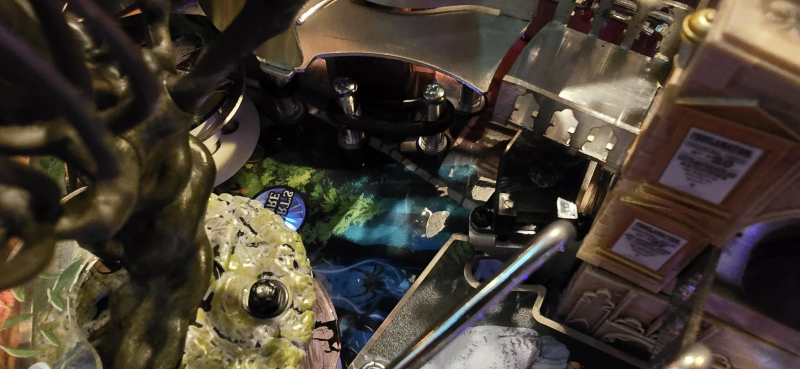

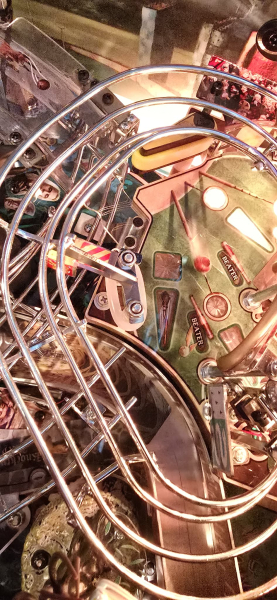

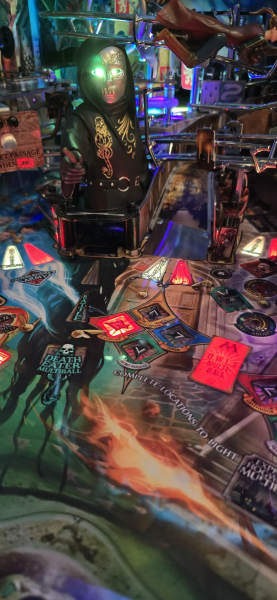

COMPLETE RUBBER KIT This rubber kit incorporates Hogwarts house colors where visible, and the hidden rubbers remain black. Notable exceptions include: Quidditch Pitch 3/4" Rubber: This is red to help visually separate the edge of the upper playfield from the surrounding wireforms. Death Eater Posts: These are glow in this kit, making them easier to see and target during gameplay. Installing the Death Eater Post Rubbers The tapered rubber goes on the left side of the Death Eater trough. Make sure to install it with the wider end at the top and the narrow end at the bottom. Swapping the Death Eater post rubbers is relatively easy. Just remove the three accessible screws and slide the Death Eater to one side. Be cautious during this step, as the connecting wires have limited slack. Tip: When reinstalling, start by loosely threading the two front screws. Once they're in place, secure the back screw to ensure proper alignment. This kit includes a shooter tip which is not listed in the manual. The manual only lists part numbers not rubber descriptions. There is a parts table in the pictures to help with this. The color of the number in the circles on the schematic is the color of the rubber to be used at that location.

Submitted by: John L. John L.

Submitted on: 2025-07-01 11:36:27 2025-07-01 11:36:27

(0)

INITIAL SETUP ONLY - INITIAL SETUP ONLY - INITIAL SETUP ONLY COLOR RUBBERS ONLY KIT - FOR INITIAL SETUP This is a partial kit that provides the rubbers needed when your HP is first received to change the noticeable black rubbers to more complementary colors. THIS IS NOT A COMPLETE RUBBER KIT This rubber kit incorporates Hogwarts house colors where visible. Quidditch Pitch 3/4" Rubber: This is red to help visually separate the edge of the upper playfield from the surrounding wireforms. Death Eater Posts: These are glow in this kit, making them easier to see and target during gameplay. Installing the Death Eater Post Rubbers The tapered rubber goes on the left side of the Death Eater trough. Make sure to install it with the wider end at the top and the narrow end at the bottom. Swapping the Death Eater post rubbers is relatively easy. Just remove the three accessible screws and slide the Death Eater to one side. Be cautious during this step, as the connecting wires have limited slack. Tip: When reinstalling, start by loosely threading the two front screws. Once they're in place, secure the back screw to ensure proper alignment. This kit includes a shooter tip which is not listed in the manual. The manual only lists part numbers not rubber descriptions. There is a parts table in the pictures to help with this. The color of the number in the circle is the color of the rubber for that location on the schematics. Ignore Black numbers as those rubbers are not included in this kit.

Submitted by: Anonymous Anonymous

Submitted on: 2025-07-04 12:12:48 2025-07-04 12:12:48

(0)

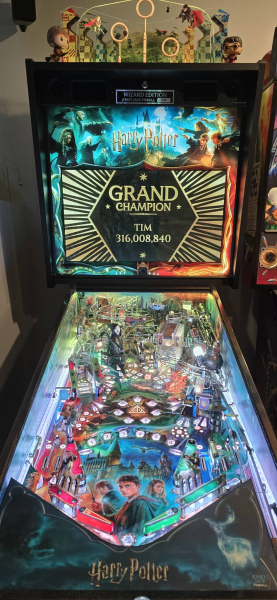

Harry Potter Wizard Edition Translucent rings, black posts, house colored flippers same as JJP. This set will include a few extra rubbers to allow some personalization in post sleeves. Even though the schematic shows 4 3/8" OD mini post rings, it has been mentioned that post between the R lanes is supposed to be 7/16" OD. So I have updated the kit to include this if needed. I found the 3/8"OD to work just fine. I have updated this to include 2 black tapered post sleeves and I personally don't like how any of the glow sleeves look. I think the translucent rubbers and mini posts look great. The rubbers in the upper playfield by the pop bumpers I haven't replaced yet as it will take a lot of disassembly. These titans are so much better than the Durabands that come with it which were worn out after a few hundred games. UPDATE I have added 2 translucent 2.5" rings as an option for the ring behind the pop bumpers which now recommends a 2.5" ring instead of a 3" ring.

Submitted by: Tim B. Tim B.

Submitted on: 2025-11-23 19:48:29 2025-11-23 19:48:29

(0)

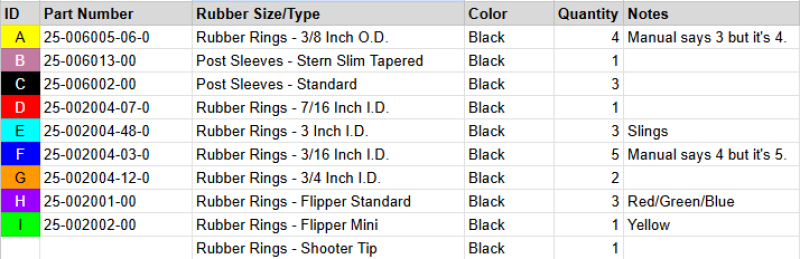

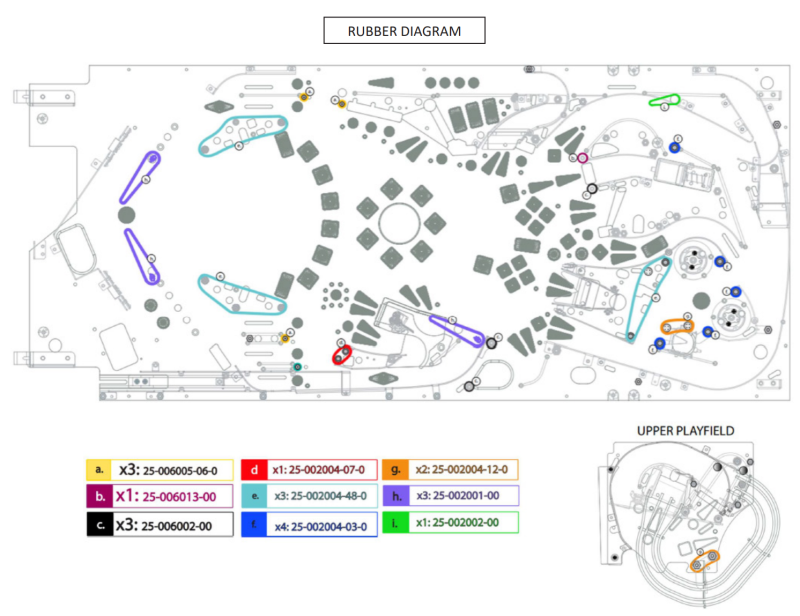

Translucent rubber kit with black posts and house color matching flipper rubbers. This kit has the correct quantities for "A" and "F", which are incorrect in the JJP manual. The Rubber Diagram image (from JJP) below is incorrect; "A" is qty. 4 and "F" is qty. 5. The fourth A is at the post at the top of the farthest right in-lane, next to the shooter lane. Refer to the chart in the second image for correct quantities. Edit: The 3" ring for the slingshot by the pop bumpers was changed from 3" to 2.5" per JJP. 3" caused ball traps. This kit has been updated to reflect that change.

Submitted by: Todd B. Todd B.

Submitted on: 2025-11-26 15:48:39 2025-11-26 15:48:39

(0)

Low bounce kit with red posts and translucent everywhere else

Submitted by: Anonymous Anonymous

Submitted on: 2026-06-03 14:48:23 2026-06-03 14:48:23
