Harry Potter
Rubber Ring Kit by John L.

(0)

Jersey Jack Pinball, Inc. , 2025

4 Players , 6 Balls

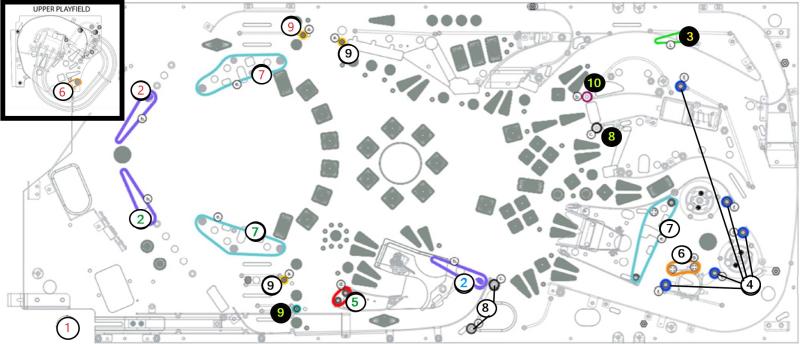

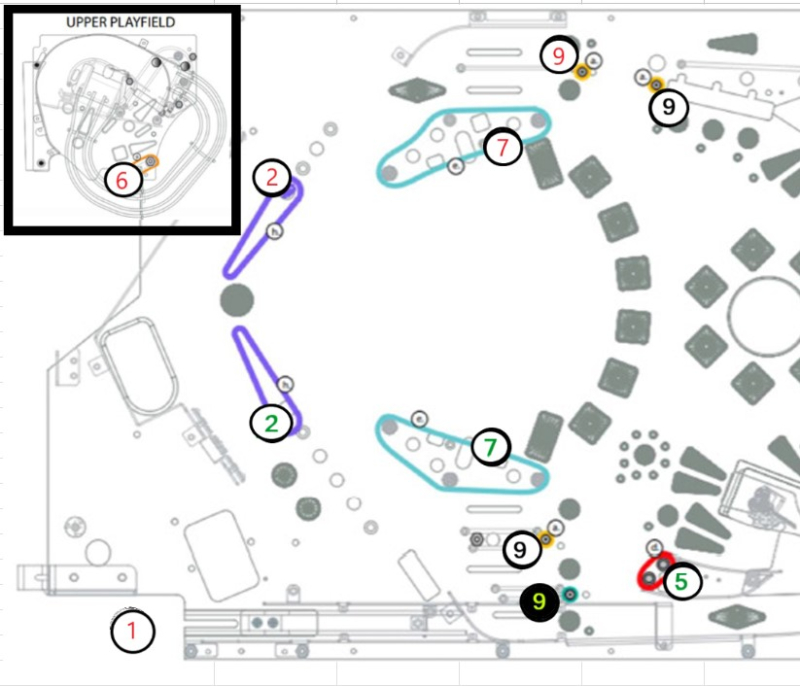

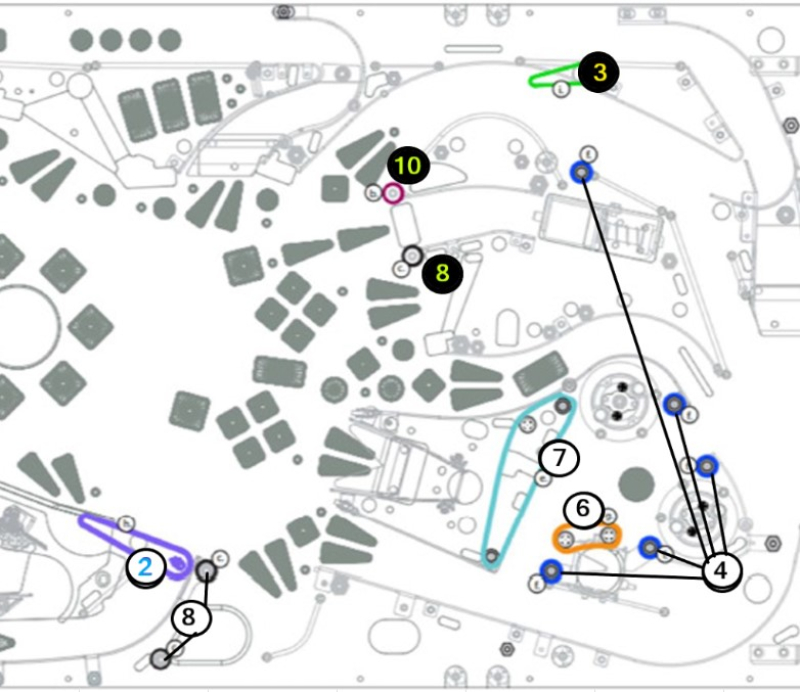

Manual Page Ring Diagram

Description

This rubber kit incorporates Hogwarts house colors where visible, and the hidden rubbers remain black. Notable exceptions include:

Quidditch Pitch 3/4" Rubber: This is red to help visually separate the edge of the upper playfield from the surrounding wireforms.

Death Eater Posts: These are glow in this kit, making them easier to see and target during gameplay.

Installing the Death Eater Post Rubbers
The tapered rubber goes on the left side of the Death Eater trough. Make sure to install it with the wider end at the top and the narrow end at the bottom.

Swapping the Death Eater post rubbers is relatively easy. Just remove the three accessible screws and slide the Death Eater to one side. Be cautious during this step, as the connecting wires have limited slack.

Tip: When reinstalling, start by loosely threading the two front screws. Once they're in place, secure the back screw to ensure proper alignment.

This kit includes a shooter tip which is not listed in the manual.

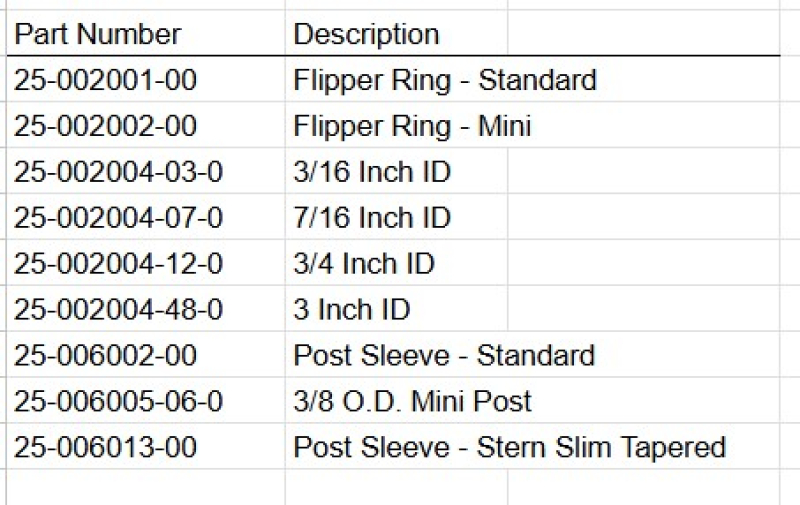

The manual only lists part numbers not rubber descriptions.

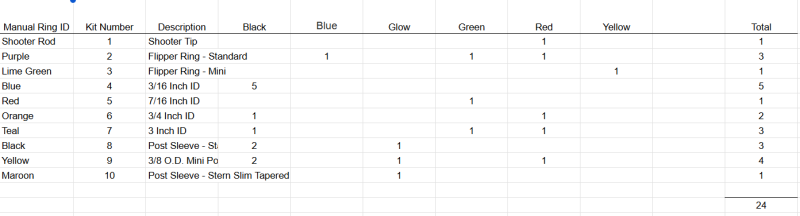

There is a parts table in the pictures to help with this.

‹ ›

Kit Contents Print

Rubber Size/Type

Color

Quantity

Rubber Rings - Shooter Tip

Red

Qty: 1

Rubber Rings - Flipper Standard

Blue

Qty: 1

Rubber Rings - Flipper Standard

Green

Qty: 1

Rubber Rings - Flipper Standard

Red

Qty: 1

Rubber Rings - Flipper Mini

Yellow

Qty: 1

Rubber Rings - 3/16 Inch I.D.

Black

Qty: 5

Rubber Rings - 7/16 Inch I.D.

Green

Qty: 1

Rubber Rings - 3/4 Inch I.D.

Black

Qty: 1

Rubber Rings - 3/4 Inch I.D.

Red

Qty: 1

Rubber Rings - 3 Inch I.D.

Black

Qty: 1

Rubber Rings - 3 Inch I.D.

Green

Qty: 1

Rubber Rings - 3 Inch I.D.

Red

Qty: 1

Post Sleeves - Standard

Black

Qty: 2

Post Sleeves - Standard

Glow

Qty: 1

Rubber Rings - 3/8 Inch O.D.

Black

Qty: 2

Rubber Rings - 3/8 Inch O.D.

Glow

Qty: 1

Rubber Rings - 3/8 Inch O.D.

Red

Qty: 1

Post Sleeves - Stern Slim Tapered

Glow

Qty: 1
